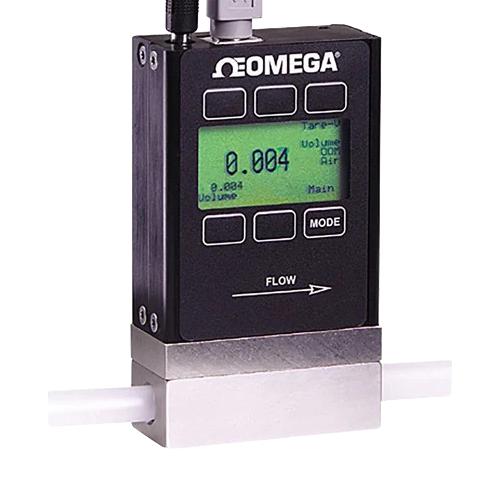

OMEGA FMA1609A Gas flow meter
The FMA-1600A series mass and volumetric flow meters by Omega utilize differential pressure within a laminar flow element to accurately measure gas flow rates. The device employs a laminar flow element (LFE) to ensure gases flow in a streamlined manner, with pressure drops related to the volumetric flow rate according to Poiseuille's law. Built-in absolute temperature and pressure sensors adjust the measurements to standard conditions. The flow meter features a maximum flow rate of 50 SL per minute, with an accuracy of ±(0.8% of reading + 0.2% full scale). It offers RS232 communication, a 1/4 FNPT connection, and does not require warm-up time or straight pipe runs. The device includes 130+ gas calibrations, covering pure and mixed gases, and has a 200:1 turndown ratio. Packaged with a 24VDC power supply, 1.8-meter cable, 8-pin mini DIN connector, operator’s manual, and NIST calibration certificate.
OMEGA FMA1609A Gas flow meter Specifications:
- Flow Rate Range: 0.5 SCCM to 50 SLM
- Accuracy: ±(0.8% of reading + 0.2% FS)
- Response Time: 10 ms typical, adjustable via RS232
- Output: 0-5 V standard, optional 4-20 mA
- Operating Temperature: -10 to 50°C (14 to 122°F)
- Maximum Pressure: 145 psig
- Pressure Drop Range: 0.5 to 50 psid for low ranges, up to 1500 SLM
- Wetted Parts: 302 and 303 stainless steel, FKM, silicone RTV, glass reinforced PPS
- Power Supply: 7 to 30 Vdc (15-30 V for 4-20 mA output)
- Response Time: 10 ms (default), response time adjustable
- Turndown Ratio: 200:1
- Calibration: 130+ gases including pure and mixed, NIST 5-point certificate
- Connections: 1/4 FNPT or 10-32 UNF threaded ports
- Communication: RS232, optional RS485, multiple units daisy-chainable
Buy the Buy Omega FMA-1600A Series Gas Flow Part Number FMA1609A Online
Purchase the Omega FMA-1600A series online today to experience accurate, responsive, and dependable gas flow measurement for a wide range of industrial applications. Featuring differential pressure technology, laminar flow elements, and extensive gas calibration options, this flow meter provides real-time readings with RS232 data output. Its no warm-up design and adaptable response time make it ideal for demanding environments. Equipped with a 24V power supply, cable, and calibration certificate, it ensures precise operation for clean gases with an easy installation process.
Order your Omega FMA-1600A Series gas flow meter today and ensure precise, fast, and reliable gas measurement for your industrial needs.
