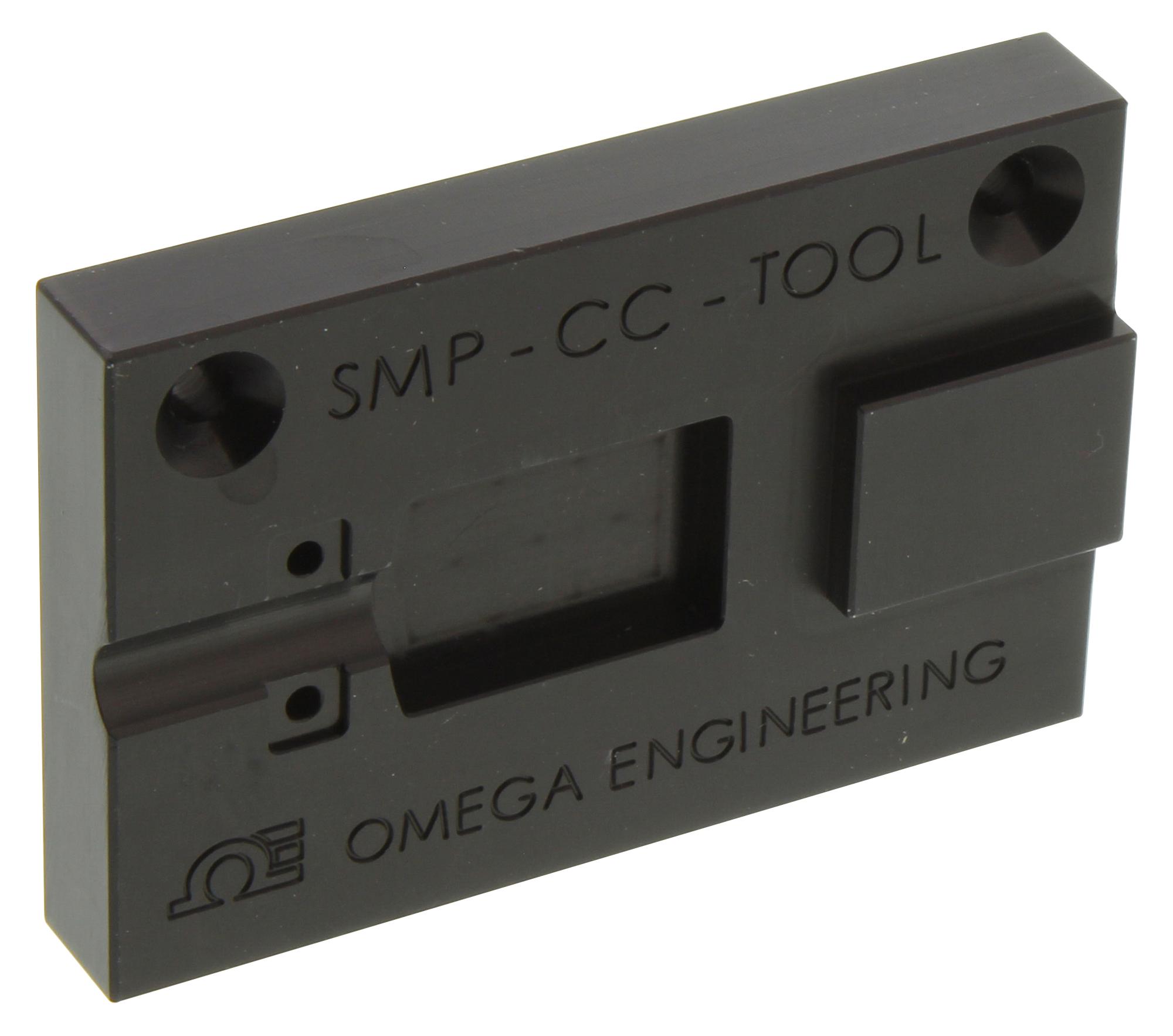

OMEGA SMPCCTOOL Miniature Thermocouple Connector
The SMPW-CC Series connectors are miniature flat pin thermocouple connectors designed for reliable signal transmission in industrial temperature ranges. They feature integral cable clamp caps, strain relief with grommet, captive cover and clamp screws, enabling secure connection with stranded or solid wire up to 20 AWG or overbraid, TWSH, armored cables up to 5.5 mm OD. Constructed with glass-filled nylon, they withstand temperatures from -29°C to 220°C. Accessories include wire cable clamps, grommets, brass crimp connectors, and a dedicated fixture tool for efficient assembly, ensuring robust thermocouple connections in demanding environments.
OMEGA SMPCCTOOL Miniature Thermocouple Connector Specifications:
- Material: Glass-filled nylon
- Temperature Range: -29°C to 220°C (-20°F to 425°F)
- Wire Compatibility: Stranded and solid wire from 40 AWG up to 20 AWG, overbraid, TWSH, armored up to 5.5 mm OD
- Screws: Combination Phillips/Slot screws with captive cover and clamp screws
- Cable Clamp: Integral with strain relief and grommet
- Dimensions: Connector size approximately 29.57 mm (1.16 inches) length, 12 mm (0.47 inches) width, with actual sizes varying per model
- Color coding: Silver, yellow, blue, black, purple, green, red, white, orange (model-dependent)
- Certifications: Not specified but suitable for industrial thermocouple applications
- Accessories include: Back plate, grommets, brass crimp connectors, fixture/tool for assembly
- Environmental: Resistant to mechanical stress and high-temperature conditions
Buy the Omega SMPW-CC Series Reliable Thermocouple Connectors for Industrial Applications
Upgrade your thermocouple installations with the Omega SMPW-CC Series miniature connectors. Featuring integral cable clamps, strain relief, and versatile wiring options, these connectors are designed for reliable electrical connections in high-temperature environments from -29°C to 220°C. They accept stranded or solid wires up to 20 AWG, overbraid, or armored cables up to 5.5 mm OD. The convenient assembly fixtures and high-quality construction ensure durable, safe, and efficient thermocouple setups, making them essential for precision temperature measurements in industrial settings.
Order your Omega SMPW-CC Series thermocouple connector with integral cable clamp today and ensure secure, temperature-resistant connections in your industrial projects.
