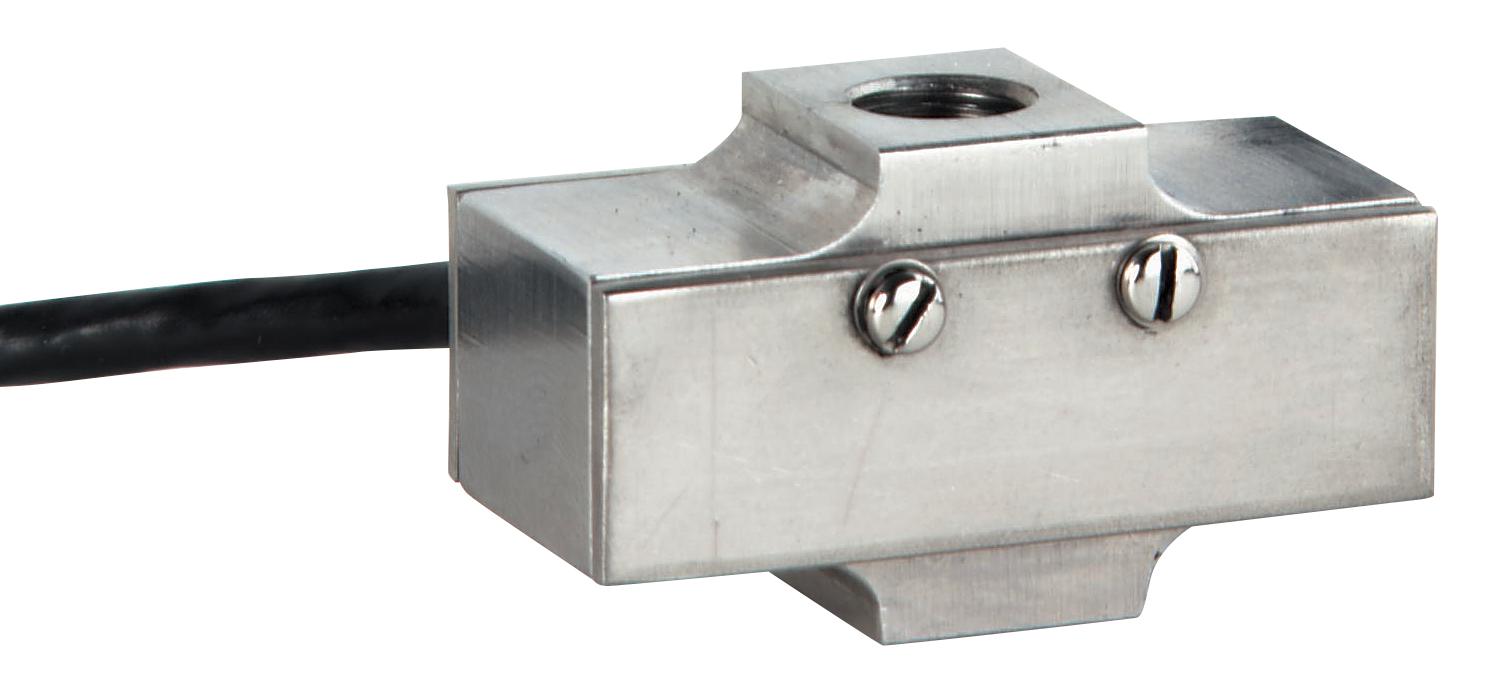

OMEGA LC70325 Low-Profile Tension Link
The LC70325 is a miniature low-profile tension link designed for industrial applications. Constructed from stainless steel for loads above 100 Ib and aluminum below, it offers high accuracy and rugged durability with a low profile height of 19 to 25 mm. Suitable for robotics, automated weighing, and batch-process control, this tension/ compression load cell features a 2 mV/V output, 10 Vdc excitation, and an IP54 protection class. Its compact size, 5-point calibration, and thermally compensated design ensure reliable performance in demanding environments.
OMEGA LC70325 Low-Profile Tension Link Specifications:
- Material: Stainless steel (above 100 Ib), Aluminum (below 100 Ib)
- Dimensions: Height 19-25 mm (0.75-1 inch); other sizes vary depending on capacity
- Output: 2 mV/V nominal
- Excitation: 10 Vdc (15V max)
- Full Scale Deflection: 0.003"
- Temperature Range: 16 to 71°C (60 to 160°F)
- Hysteresis: 16 to 71°C
- Output Resistance: 350 ± 10 Ω
- Protection Class: IP54
- Repeatability: 0.15% of full scale
- Ultimate Overload: 300% of capacity
- Cable: 3.6 meters (12 feet), shielded 4-conductor PVC
- Calibration: 5-point NIST traceable
Buy the Miniature Low-Profile Tension Links – Reliable LC70325 for Industrial Applications
Enhance your industrial weighing and automation setup with the compact and rugged Low-Profile Tension Link. Designed for precision and durability, it features stainless steel construction for loads above 100 Ib, aluminum for loads below, and a low height profile of 19 to 25 mm. It offers a 2 mV/V output, IP54 protection, and precise 5-point calibration, making it ideal for robotics, batch processing, and automated weighing. Purchase online today to ensure reliable, high-accuracy performance in demanding environments.
Buy the LC70325 miniature low-profile tension link now and experience unmatched accuracy, durability, and efficiency in your industrial weighing and automation systems.
Frequently Asked Questions
Where can I buy OMEGA LC70325?
You can click on the BUY or RFQ button to purchase LC70325 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part LC70325?
You can download the LC70325 datasheet or visit the OMEGA website for support.
Who is the manufacturer of LC70325?
OMEGA
