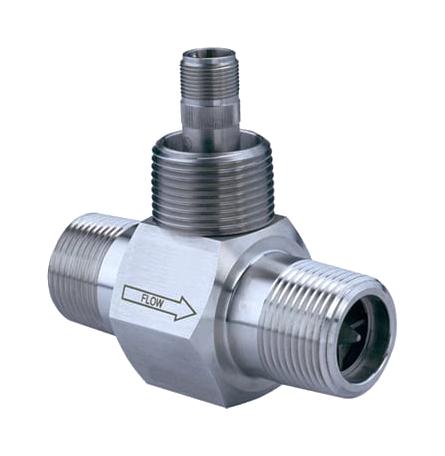

OMEGA FTB1422AMP Liquid Turbine Flowmeter
This economical liquid turbine flow meter features amplified pulse output, providing an effective solution for flow measurement applications. Constructed with rugged 316 stainless steel, it offers durability and long service life in severe operating environments. The device ensures accurate and repeatable flow measurements and is calibrated according to NIST standards, making it suitable for demanding industrial applications such as oilfield operations and chemical processing.
OMEGA FTB1422AMP Liquid Turbine Flowmeter Specifications:
- Body Material: 316 Stainless Steel
- Rotor: CD4MCU Stainless Steel
- Rotor Support: 316 Stainless Steel
- Rotor Shaft: Tungsten carbide
- Pressure Rating: 5000 psi maximum
- Turndown Ratio: 10:1
- Flow Rate Range: varies from 2.3 to 681 GPM depending on model
- Accuracy: +1% of reading for 1" and larger, +1% in upper 70% of range
- Repeatability: +0.1%
- Magnetic Pickup: 30 mV/P-P
- Calibration: NIST traceable water calibration
- Temperature Range: -101°C to 177°C (-150°F to 350°F), optional -HT version extends to -232°C (-450°F)
- Maximum Pressure: 5000 psi
- End Connections: NPT, BSPP optional
Buy the Omega FTB-1422AMP – Reliable Liquid Turbine Flowmeter for Industrial Applications
Purchase the Omega FTB-1422AMP online today—engineered for accurate liquid flow measurement with amplified pulse output and rugged stainless steel construction. This reliable, durable flowmeter is ideal for severe environments and offers NIST calibration for precision. Perfect for oilfield and chemical industries, it features a wide flow range, high pressure rating, and exceptional repeatability. Experience seamless installation with standard NPT connections and enjoy the confidence of high-quality materials, making it the top choice for industrial flow measurements.
Get Omega FTB-1422AMP today—built for precision and long-lasting durability in demanding industrial environments.
