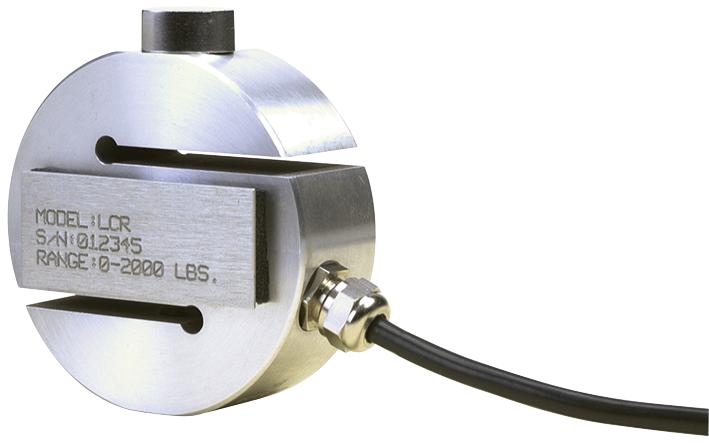

OMEGA LCR250 Load Cell
The load cell features high accuracy with 5-point calibration, rugged construction with stainless steel for high-range applications, and lightweight aluminum for lower capacities. Designed for industrial weighing systems, it offers a 0.25% interchangeability, tension calibration from 17°C to 71°C, and protection rated IP55. Operating within -18°C to 71°C, it has a linearity of +0.03% and an output of 3 mV/V. Suitable for diverse industrial environments, it ensures precise weight measurement with high reliability and durability.
OMEGA LCR250 Load Cell Specifications:
- Excitation: 10 Vdc, 15V max
- Output: 3 mV/V +0.25% calibration
- Temperature Range: -18°C to 71°C
- Material: Stainless steel on high ranges, lightweight aluminum on lower ranges
- Linearity: +0.03% FS
- Zero Balance: +0.0027% FS/°C
- Hysteresis: +0.0015%
- Electrical Connection: 6 m (20') cable, 4-conductor, 24 AWG
- Bridge Resistance: 350 ohms nominal
- Protection Level: IP55
- Creep (20 min): +0.03% of capacity
- Overload Capacity: 150% of rated load
- Operating Temperature: -18°C to 71°C
- Thermal Effects: Minimal variation within specified temperature range.
Buy the High-Accuracy Series Load Cell: LCR250
Purchase the high-accuracy industrial load cell LCR250 online today and ensure reliable, precise weight measurements. Its rugged stainless steel construction, 5-point calibration, and IP55 protection make it perfect for demanding environments. Whether you need a capacity of 250 lbs or higher, this load cell provides consistent performance and easy integration into your weighing systems. Order now to benefit from fast shipping and expert support for your industrial measurement needs.
Get High-Accuracy Series Load Cell LCR250 today—designed for precise industrial weighing and long-lasting durability.
