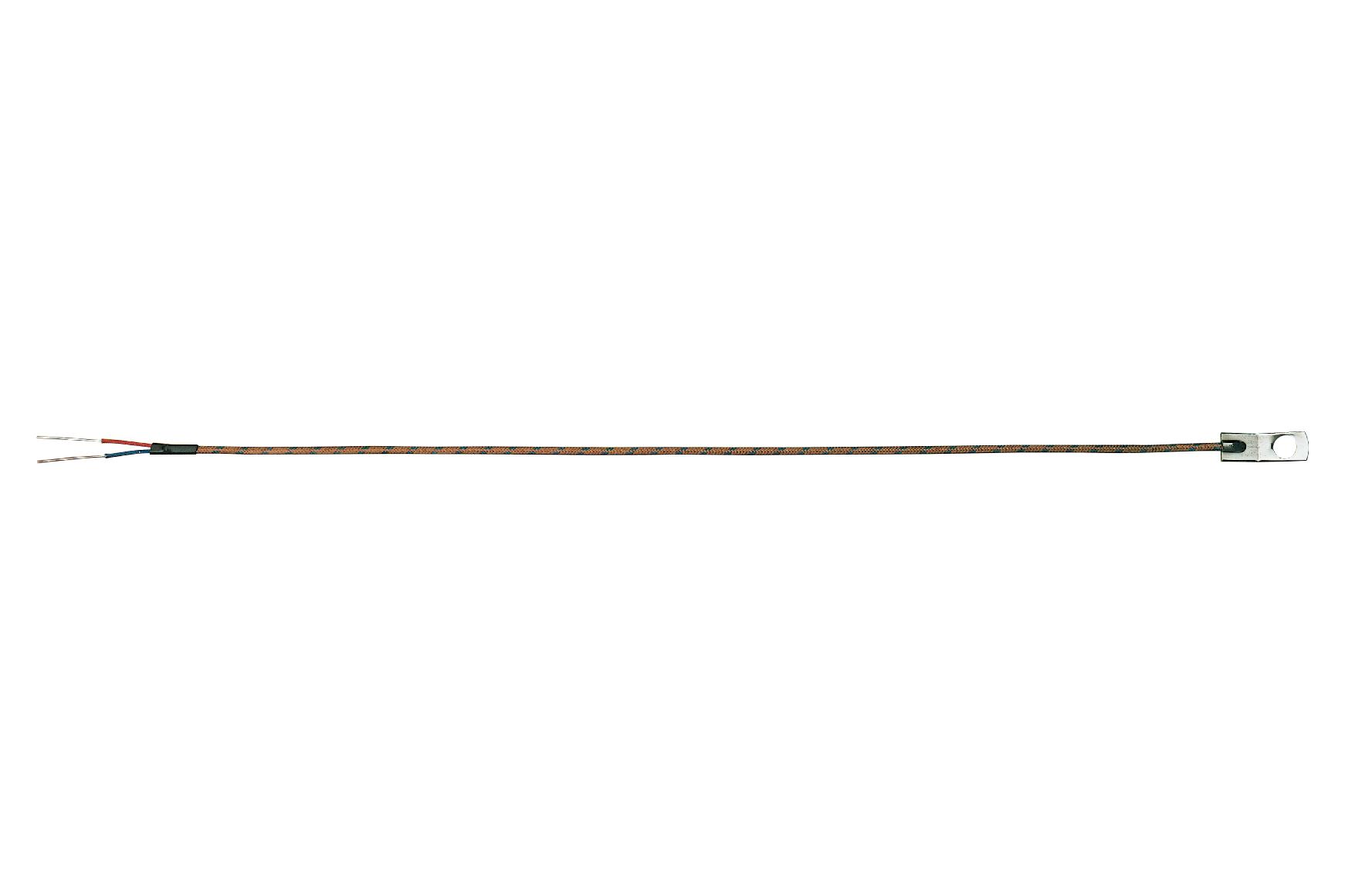

OMEGA WTK660 Thermocouple Assembly
The WT Series Bolt-On Washer Thermocouple Assemblies are rugged, high-temperature sensors designed for precise surface temperature measurements. Constructed with 20 AWG solid wire and insulated with PFA rated for up to 480°C, these assemblies feature grounded junctions and are available with various screw sizes and lengths, including custom options. They are ideal for mounting on different surfaces to monitor temperature in industrial environments, with glass-rated insulation for high heat resistance, ensuring durability and accurate readings in demanding conditions.
OMEGA WTK660 Thermocouple Assembly Specifications:
- Wire Material: 20 AWG solid wire
- Insulation Material: PFA rated to 480°C
- Junction Type: Grounded
- Screw Sizes: #6, #8, #10, M4.5, M6
- Dimensions: #6 and #8 - 6.5 mm W x 22 mm L; #10 and M4.5 - 9 mm W x 25 mm L
- Temperature Rating: Glass insulated to 480°C (900°F)
- Lead Lengths: 300 mm (12 inches) standard, custom lengths available
- Connectors: Standard with options for male/female, LRTC, SMPW, OSTW
- Applicable for surface mounting, easy installation, and precise temperature measurement
- Custom options include Kapton insulation, longer leads, and specialized terminations
Buy the Buy Omega BT Assembly Part Number WTK660 Online
Explore the Omega WTK660 Bolt-On Washer Thermocouple Assemblies available for instant online purchase. Designed for high-temperature industrial environments, with rugged construction, PFA insulation rated to 480°C, and various screw sizes for versatile mounting options. These assemblies feature a grounded junction for accurate surface temperature readings and are suitable for demanding applications. Custom lengths, insulations, and termination options are also available to meet specific requirements. Order now to ensure reliable temperature monitoring in your industrial processes, backed by Omega's quality and durability.
Get Omega WTK660 thermocouple assembly today—built for high-temperature industrial surface measurements and long-lasting durability.
Frequently Asked Questions
Where can I buy OMEGA WTK660?
You can click on the BUY or RFQ button to purchase WTK660 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part WTK660?
You can download the WTK660 datasheet or visit the OMEGA website for support.
Who is the manufacturer of WTK660?
OMEGA
