ONSEMI FDMS86103L Power MOSFET
The FDMS86103L is a high-performance N-channel MOSFET designed with advanced PowerTrench technology, shielded gate structure, and a robust MSL1 package. It features low Rds(on), high current capacity up to 81 A, and a drain-source voltage of 100 V, making it ideal for power switching and DC-DC conversion applications. This device offers excellent switching performance, high efficiency, and reliability with 100% unit-in-line testing. Its compact design ensures easy integration into various industrial, automotive, and consumer electronic power circuits, supporting demanding thermal and electrical requirements.
ONSEMI FDMS86103L Power MOSFET Specifications:
- Drain to Source Voltage: 100 V
- Gate to Source Voltage: ±20 V
- Drain Current - Continuous at 25°C: 81 A
- Drain Current - Continuous at 100°C: 51 A
- Pulsed Drain Current: 414 A
- Power Dissipation at 25°C: 104 W
- Operating Junction Temperature Range: -55 to +150°C
- Thermal Resistance Junction to Case: 1.2°C/W
- Thermal Resistance Junction to Ambient: 50°C/W
- Single Pulse Avalanche Energy: 312 mJ
- Gate Threshold Voltage: 1.0 to 3.0 V
- Gate Charge: 43 to 60 nC
- Reverse Recovery Time: 57 to 90 ns
- Body Diode Forward Voltage: 0.78 to 1.3 V

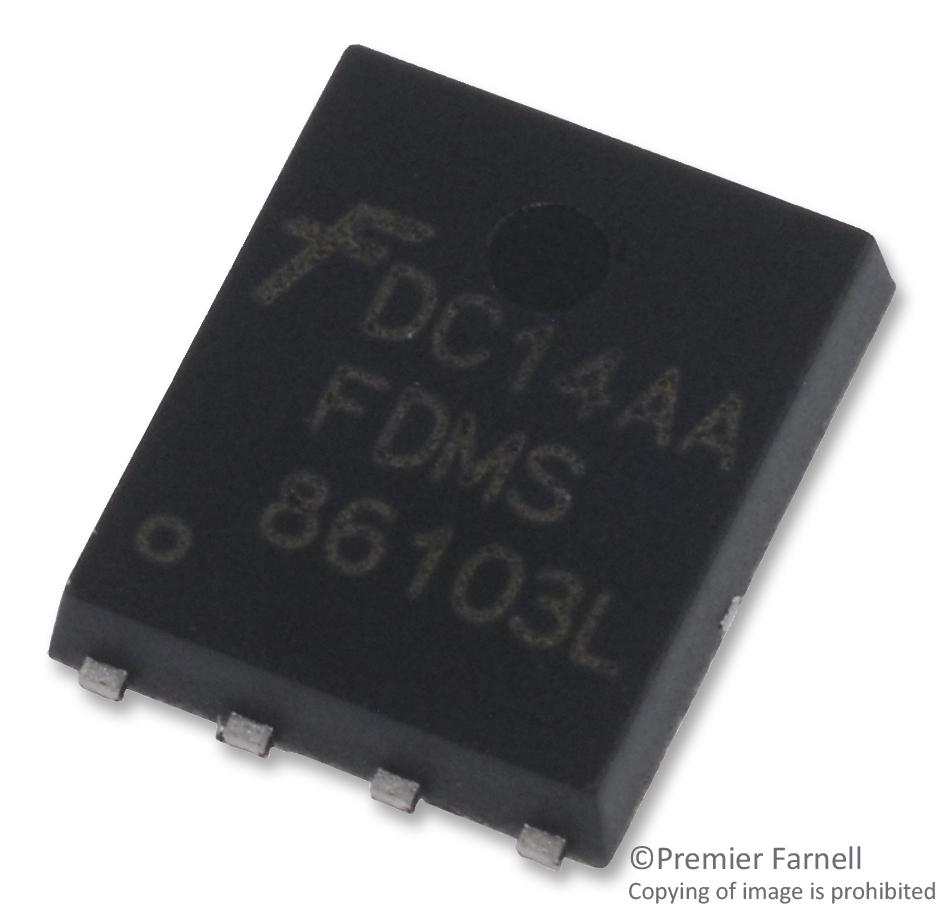

Buy the Fairchild FDMS86103L – Reliable Power MOSFET for Industrial Applications
Purchase the reliable Fairchild FDMS86103L Power MOSFET online today to ensure robust high-current switching in your industrial, automotive, or consumer electronic power systems. This advanced N-channel device features low Rds(on), high current capacity, and a durable MSL1 package, providing excellent efficiency and thermal stability. Perfect for demanding applications like DC-DC converters and power management. Get fast delivery and technical support to keep your projects on track and boost your system performance with this high-quality MOSFET, available now for quick online ordering.
Order your Fairchild FDMS86103L high-current MOSFET today and enhance your power switching and DC-DC conversion projects with dependable performance.
Frequently Asked Questions
Where can I buy ONSEMI FDMS86103L?
You can click on the BUY or RFQ button to purchase FDMS86103L from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part FDMS86103L?
You can download the FDMS86103L datasheet or visit the ONSEMI website for support.
Who is the manufacturer of FDMS86103L?
ONSEMI
