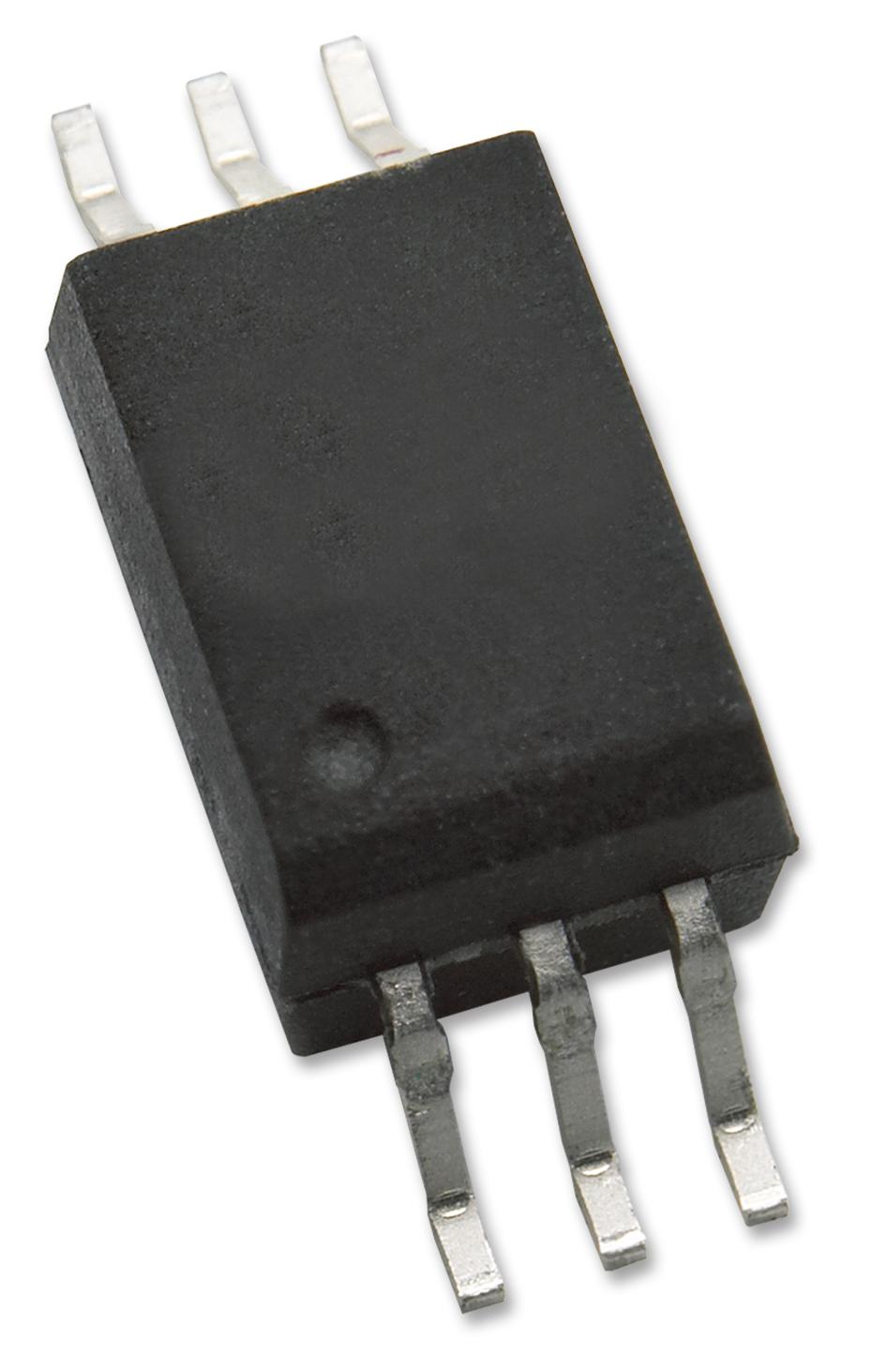

ONSEMI FOD8342TR2V Gate Drive Optocoupler
The FOD8342TR2V is a high-speed, 3.0 A output current gate drive optocoupler designed for efficient switching of IGBT and MOSFET devices in industrial motor drives, inverters, and power systems. Featuring stretched body packaging with 8 mm creepage and clearance, it ensures high voltage insulation, noise immunity, and reliable operation over a wide temperature range from -40°C to 100°C. The device complies with safety standards UL1577 and IEC 60747-5-5, making it suitable for high-voltage and industrial applications, with a compact 6-pin SOP package for easy integration.
ONSEMI FOD8342TR2V Gate Drive Optocoupler Specifications:
- Output Current: 3.0 A
- Isolation Voltage: 5,000 V (UL), 1,140 V peak working insulation voltage
- Input Voltage: Forward 1.8 V (typ), Reverse 5.0 V (max)
- Supply Voltage: 10 V to 30 V
- Maximum Working Insulation Voltage: 891 V (VIL), 1,140 V (peak)
- Operating Temperature Range: -40°C to 100°C
- Creepage & Clearance Distance: 8 mm
- Insulation Resistance: 10^9 Ω
- Transition Time: Propagation delay 210 ns (max), pulse width distortion 65 ns (max)
- Package: SOP 6-pin, Stretch Body
- Safety & Regulatory: UL1577, IEC 60747-5-5
- Max Reverse Input Voltage: 5 V
- Peak Output Voltage: Vpp to Vss, up to 30 V
Buy the Buy ON Semiconductor FOD8342TR2V High-Speed Gate Drive Optocoupler Online
Purchase the ON Semiconductor FOD8342TR2V online and enjoy a compact, high-speed optocoupler solution designed for efficient gate driving of IGBT and MOSFETs in industrial power applications. This device offers 3A peak output current, high insulation voltage of up to 5,000 V, and complies with UL and IEC safety standards. Its wide operating temperature range from -40°C to 100°C ensures reliable performance in demanding environments. Simplify your assembly with a small 6-pin SOP package, perfect for high-voltage inverter, motor drive, and power supply systems. Buy now and enhance your power system’s efficiency and safety.
Get ON Semiconductor FOD8342TR2V today—built for high-voltage insulation, rapid switching, and industrial-grade durability in power systems.
Frequently Asked Questions
Where can I buy ONSEMI FOD8342TR2V?
You can click on the BUY or RFQ button to purchase FOD8342TR2V from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part FOD8342TR2V?
You can download the FOD8342TR2V datasheet or visit the ONSEMI website for support.
Who is the manufacturer of FOD8342TR2V?
ONSEMI
