ONSEMI MOC3052VM High-Voltage Optoisolator
The MOC3052VM is a high-performance, optoisolator designed for safe electrical insulation and phase control applications such as solenoid control, lamp ballasts, and motor controls. It features a GaAs infrared emitting diode coupled with a non-zero-crossing silicon triac, offering excellent static dv/dt stability for stable switching of inductive loads. With a 600 V peak blocking voltage and safety certifications like UL1577 and IEC60747-5-2, this device ensures reliable operation in AC line isolation, static power switching, and interfacing microprocessors with AC peripherals, supporting various industrial automation needs.
ONSEMI MOC3052VM High-Voltage Optoisolator Specifications:
- Peak Blocking Voltage: 600 V
- Peak Surge Voltage: 7500 Vpeak
- Isolation Resistance: 10^10 ohms
- Insulation Thickness: 0.5 mm
- External Creepage and Clearance: 7 mm
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature: -40°C to +150°C
- Power Dissipation at 25°C: 330 mW (Device), 100 mW (Emitter), 300 mW (Detector)
- Lead Solder Temperature: 260°C for 10 seconds
- Package Type: 6-Pin DIP, surface mount options available
- Approvals: UL1577, IEC60747-5-2
- Dimensions: Length approx. 8.13-8.89 mm, width 6.10-6.60 mm
- Mechanical: Through hole and surface mount package options, lead spacing 0.4 inch (10.16 mm)
- Trigger Current: 10-15 mA
- Off-State Output Voltage: 600 V
- V / Peak Surge Voltage: 7500 V peak
- Maximum Junction Temperature: 100°C
- Lead Soldering Temperature: 260°C

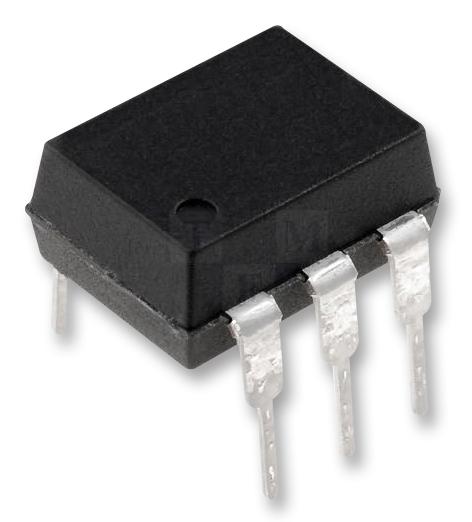

Buy the Buy Fairchild Optoisolator Part Number MOC3052VM Online
Purchase the Fairchild MOC3052VM optoisolator online today to ensure safe electrical insulation and stable phase control in your AC applications. This device is ideal for microprocessor interfacing, motor and lamp control, and static power switching with a 600 V peak voltage, UL certification, and robust safety standards. Reliable and easy to integrate, it is perfect for industrial automation, lighting dimmers, and solenoid drives, providing excellent performance and high aislamiento. Buy now to enhance your project’s safety and efficiency with this trusted component.
Order your Fairchild Series MOC3052VM optoisolator today and secure reliable AC line isolation for your industrial and automation projects.
Frequently Asked Questions
Where can I buy ONSEMI MOC3052VM?
You can click on the BUY or RFQ button to purchase MOC3052VM from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MOC3052VM?
You can download the MOC3052VM datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MOC3052VM?
ONSEMI
