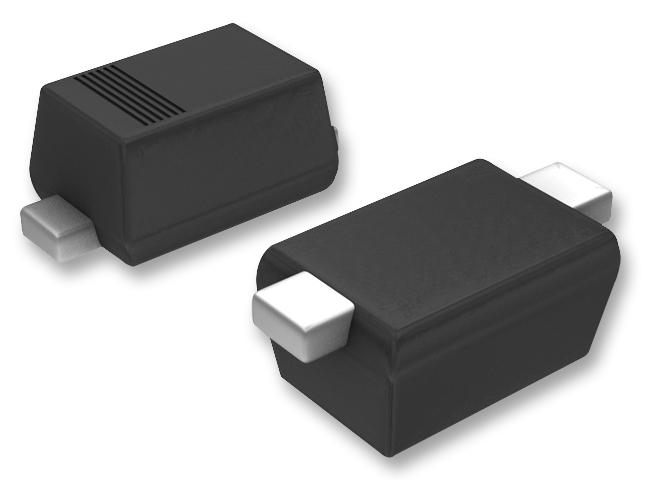

ONSEMI MM5Z4V7T1G Zener Diode
This series of Zener diodes in the SOD-523 surface mount package offers reliable voltage regulation protection for space-constrained applications like smartphones and high-density PCBs. With a standard breakdown voltage range of 2.4 V to 75 V, they provide a 500 mW power rating. The small, low-profile body measures 0.047” x 0.032” with a height of 0.028”, making them suitable for automotive and industrial use. Pb-free, RoHS compliant, and qualified for automotive applications, these diodes ensure durability and consistent performance in various environments.
ONSEMI MM5Z4V7T1G Zener Diode Specifications:
- Standard Zener Breakdown Voltage Range: 2.4 V to 75 V
- Steady State Power Rating: 500 mW
- Body Dimensions: 0.047” x 0.032” (1.20 mm x 0.80 mm)
- Low Body Height: 0.028” (0.7 mm)
- ESD Rating: Class 3 (> 16 kV) per Human Body Model
- Package: SOD-523, Case 502, Style 1
- Lead Finish: Matte Sn (Tin)
- Maximum Reflow Temperature: 260°C
- Qualification: AEC-Q101, Pb-Free, RoHS compliant
- Maximum Junction-to-Ambient Resistance: 250 °C/W
- Maximum Storage and Operating Temperature: -65°C to +150°C
- Mechanical: Transfer-molded plastic case, UL 94 V-0, Mounting position: any
- Maximum Device Dissipation: 500 mW, Derating at 4.0 mW/°C
Buy the ON Semiconductor MM5Z4V7T1G – Reliable Zener Voltage Regulator for Industrial Applications
Purchase the ON Semiconductor MM5Z4V7T1G Zener diode today for exceptional voltage regulation in space-constrained applications like user electronics and automotive systems. Designed with a compact SOD-523 package, this 500 mW device offers a wide breakdown voltage range from 2.4V to 75V, ensuring reliable protection. It's Pb-free, RoHS compliant, and meets automotive qualification standards, guaranteeing durability and high performance. Buy online now to enhance your high-density PCB designs with proven voltage regulation and protection in a small, robust package.
Get ON Semiconductor MM5Z4V7T1G today—built for precision and long-lasting durability in voltage regulation solutions.
Frequently Asked Questions
Where can I buy ONSEMI MM5Z4V7T1G?
You can click on the BUY or RFQ button to purchase MM5Z4V7T1G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MM5Z4V7T1G?
You can download the MM5Z4V7T1G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MM5Z4V7T1G?
ONSEMI
