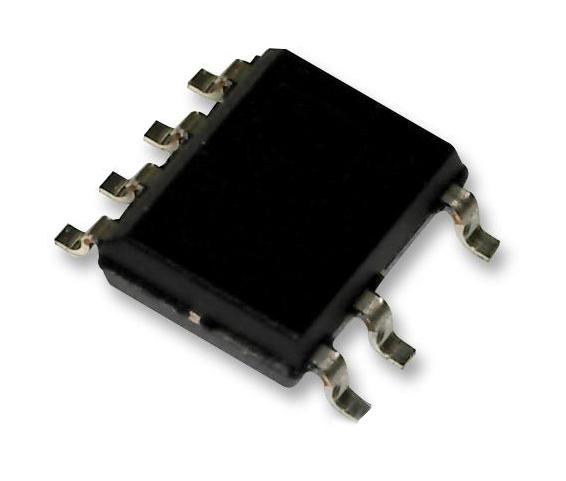

ONSEMI NCP1246BLD065R2G Flyback Power Controller
The NCP1246BLD065R2G is a fixed-frequency, current-mode controller designed for flyback converters, optimizing light load efficiency and stand-by power. It features a dynamic self-supply, brown-out detection, built-in fault timers, and low no-load power consumption. Equipped with frequency jittering, soft-start, slope compensation, and overcurrent protection, this device ensures robust power supplies with enhanced EMI performance and safety features. Ideal for offline power adapters and electronic power supplies requiring high efficiency, reliable overload protection, and minimal standby power. The controller operates up to 65 kHz, with options for 100 kHz, and integrates comprehensive safety mechanisms including thermal shutdown and X2 capacitor discharge.
ONSEMI NCP1246BLD065R2G Flyback Power Controller Specifications:
- Operating frequency: 65 kHz (options for 100 kHz)
- Maximum duty cycle: 80%
- Maximum on time: 123 μs (65 kHz), 8 μs (100 kHz)
- Frequency jittering amplitude: ±6%
- Control modes: fixed PWM, frequency foldback, skip mode
- Overcurrent fault timer: 108 ms (typical), latch or autorecover modes
- Vcc supply: up to 28 V, UVLO thresholds at 11.0 V start, 9.3 V stop
- Thermal shutdown at approximately 150°C with 30°C hysteresis
- Overvoltage detection: Vovp: 25-28 V
- X2 capacitor discharge feature to reduce input power to <25 mW in standby
- Package: SOIC-7, case 751U
- Electrical ratings include maximum voltage on DRV pin: 20 V, on HV pin: 500 V
Buy the ON Semiconductor Series Power Controller: NCP1246BLD065R2G
Purchase the ON Semiconductor Series Power Controller NCP1246BLD065R2G online now to benefit from advanced features such as overcurrent protection, brown-out detection, low standby power, and frequency jittering. This robust controller is ideal for designing high-efficiency offline power supplies, adapters, and electronic power systems. Its comprehensive safety features, including thermal shutdown and X2 capacitor discharge, ensure durable operation. Get the best deals and fast delivery today, secure your supply's performance and safety with a trusted component that simplifies complex power supply designs.
Order your ON Semiconductor Series Power Controller NCP1246BLD065R2G today and enhance your power supply design with reliable efficiency and safety features.
Frequently Asked Questions
Where can I buy ONSEMI NCP1246BLD065R2G?
You can click on the BUY or RFQ button to purchase NCP1246BLD065R2G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NCP1246BLD065R2G?
You can download the NCP1246BLD065R2G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NCP1246BLD065R2G?
ONSEMI
