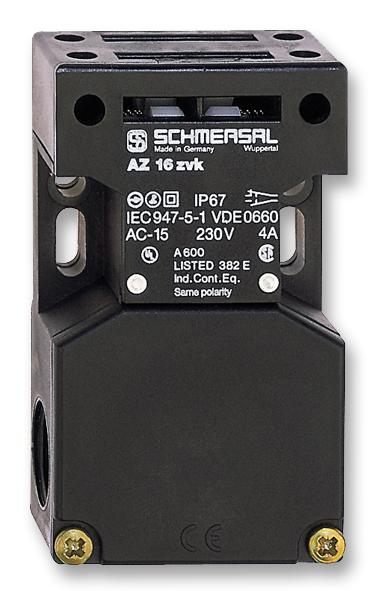

Schmersal AZ1602ZVRKM20 Safety Switch
The AZ 16 safety switch with separate actuator features a thermoplastic enclosure, double insulation, and large wiring compartment. It measures 52mm x 90mm x 30mm and provides high contact reliability at low voltages and currents. Designed with multiple coding options and a long lifespan, it offers a high level of insensitivity to soiling and protection against ingress. Its modular design includes cable entries M 16 x 1.5, making it suitable for industrial safety applications with certified standards and extensive approval as per EN ISO 13849-1. It includes optional accessories like actuators for retrofitting or play-free interlocking of light guards.
Schmersal AZ1602ZVRKM20 Safety Switch Specifications:
- Enclosure: Thermoplastic
- Dimensions: 52mm x 90mm x 30mm
- Material of Housing: Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
- Contact Material: Silver
- Protection Class: IP67
- Standards: EN ISO 13849-1, EN 60947-5-1, BG-GS-ET-15
- Electrical Contacts: 2 safety contacts, 1 normally open (NO), 1 normally closed (NC)
- Switching Principle: Snap action with self-cleaning contact
- Electrical Data: Ui 500 V, Uimp 4kV, Ithe 10A, Max Fuse 6A
- Mechanical Life: > 1,000,000 operations
- Ambient Temperature: -30°C to +80°C
- Latching Force: 30N
- Positive Break Force: 20N
- Actuator Compatibility: Suitable for retrofitting and play-free interlocking
- Cable Entries: M16 x 1.5, optional M20, M12 connector options
Buy the Schmersal AZ 16-02ZVRK – Reliable Safety Switch for Industrial Applications
Order the Schmersal AZ 16 safety switch online now and ensure safety and reliability in your industrial setup. Its rugged thermoplastic enclosure, multiple coding options, and IP67 protection guarantee long-term durability and protection against dirt and moisture. Designed for easy installation with large wiring compartments and M16 cable entries, this safety switch offers over a million operational cycles and certified compliance with international standards. Perfect for retrofitting or new safety systems, it ensures reliable operation and high safety integrity for machinery protection.
Get Schmersal AZ 16-02ZVRK today—built for precision, high safety, and long-lasting durability in demanding industrial environments.
