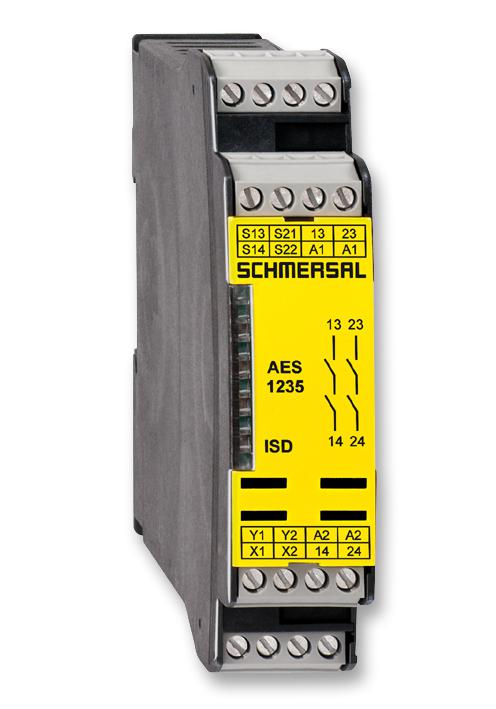

SCHMERSAL AES123524VDC Safety Control Module
The AES 1235 safety control module monitors guard door sensors and electromechanical switches to ensure safety compliance. It features two safety contacts, signaling outputs, and supports monitoring of BNS range magnetic sensors. Designed for emergency stop applications, it complies with EN ISO 13849-1 and IEC 61508 standards, offering high reliability with a mission time of up to 20 years. Its compact DIN rail mount, rugged thermoplastic housing, and adjustable delay functions make it suitable for diverse industrial safety systems, including control categories up to 3 and performance levels SIL 3.
SCHMERSAL AES123524VDC Safety Control Module Specifications:
- Dimensions: Width 22.5 mm, Height 100 mm, Depth 121 mm
- Housing Material: Plastic, glass-fibre reinforced thermoplastic
- Contacts: 2 safety contacts, 2 signaling outputs
- Monitoring Range: BNS magnetic safety sensors
- Control Category: Up to PL 3 and Category 03
- Standards: EN ISO 13849-1, IEC 61508, IEC/EN 60204-1, IEC 60947-5-3
- Approval: BGV-GS-ET-14, BGV-GS-ET-20
- Temperature Range: -25°C to +70°C
- Protection Class: IP40 (enclosure), IP54 (terminals)
- Connection Type: Screw connection, pre-wired cable
- Cable Section: Min. 0.25 mm², Max. 2.5 mm²
- Electrical Life: 20 million operations
- Mechanical Life: 20,000,000 operations
- Supply Voltage: 24 VDC ±15%
- Power Consumption: Max. 5W
- Switching Capacity: 6A, 250V AC
- Ambient Conditions: Humidity, shock resistance, vibration endurance per IEC standards.
Buy the Schmersal Series AES 1235 Safety Control Module: AES123524VDC
Secure your safety systems with the Schmersal Series AES 1235 control module. Featuring dual safety contacts, signaling outputs, and DIN rail mounting, this device reliably monitors guard doors and magnetic sensors for emergency applications. Its compact design fits in control panels, offering up to 20-year mission life, high switching capacity, and compliance with key safety standards. Perfect for control categories up to 3, it guarantees operational safety and reliability. Purchase online today to enhance your industrial safety infrastructure.
Order your Schmersal Series AES 1235 safety control module today and ensure reliable safety monitoring for your industrial guard systems.
