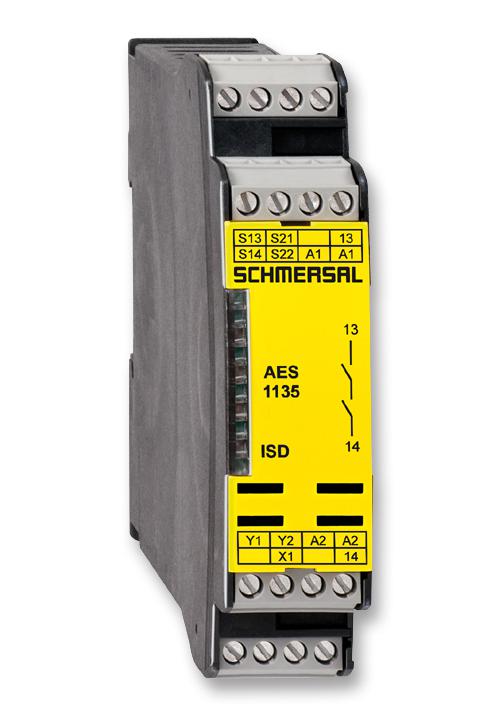

Schmersal AES113524VDC Safety Monitoring Module
The AES 1135 safety monitoring module from Schmersal is designed for.guard door monitoring and emergency stop applications, ensuring reliable safety control in industrial settings. It features a magnetic safety sensor interface, one safety contact, two signaling outputs, and supports monitoring of electromechanical and non-contact switchgear. The module complies with EN ISO 13849-1 and IEC 61508 standards, offering high reliability, quick response times, and robust construction suitable for harsh environments. Its compact design, IP40 enclosure, and DIN rail mounting facilitate easy installation and integration into control systems, providing comprehensive fault detection and diagnostics to enhance safety performance.
Schmersal AES113524VDC Safety Monitoring Module Specifications:
- Material of the housings: Plastic, glass-fibre reinforced thermoplastic
- Protection class: IP40 enclosure, IP20 terminals
- Ambient temperature: -25°C to +70°C
- Weight: 155 g
- Control category: PL e, SIL 3
- Standards: EN ISO 13849-1, IEC 61508
- Electrical lifetime: 20 million operations
- Mechanical life: 20,000,000 operations
- Connection type: Screw connection, cable section min. 0.25 mm², max. 2.5 mm²
- Supply voltage: 24 VDC ±15%, rated DC control voltage
- Rated operating voltage Ue: 24 VDC
- Switching capacity of safety contacts: 6 A, 230 VAC
- Emc rating: IEC/EN 60204-1, IEC 60947-5-3, EN 954-1
- Protection class terminals: IP20
- Environmental conditions: Temperature -25°C to +70°C, storage -25°C to +70°C
- Machine mounting: DIN rail
- Mechanical dimensions: Width 22.5 mm, height 400 mm, depth 121 mm
Buy the Schmersal AES1135 U+2013 Reliable Safety Monitoring for Industrial Applications
Enhance your industrial safety systems with the Schmersal AES 1135 safety monitoring module. Designed for guard door monitoring and emergency stop functions, it features magnetic sensor interfaces, signaling outputs, and comprehensive fault diagnostics. Easy to install on DIN rails, it complies with IEC 61508 and EN ISO 13849-1 standards, ensuring high safety levels and durability in harsh environments. Order online now to secure your machinery and safeguard personnel with this dependable, high-performance safety control component.
Order your Schmersal AES 1135 safety monitoring module today and ensure reliable protection for guard door systems and emergency stop operations.
Frequently Asked Questions
Where can I buy Schmersal AES113524VDC?
You can click on the BUY or RFQ button to purchase AES113524VDC from an authorized Schmersal distributor.
How do I troubleshoot issues or seek technical support for part AES113524VDC?
You can download the AES113524VDC datasheet or visit the Schmersal website for support.
Who is the manufacturer of AES113524VDC?
Schmersal
