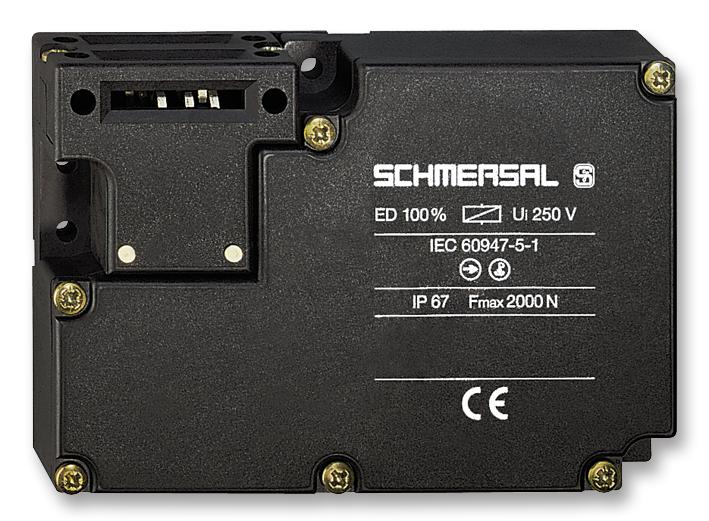

Schmersal AZM161SK1212RKA024 Safety Interlock
The AZM 161 solenoid interlock is a high-reliability safety switch designed for safeguarding sliding, hinged, and removable guards in industrial automation. Its robust thermoplastic enclosure, double-insulated design, and large wiring compartment ensure durability and ease of installation. It features a long operational life exceeding 1,000,000 cycles, manual and emergency releases, and a positive break NC contact, suitable for safety functions in automation systems. Approved under EN ISO 13849-1 with a mission time of 2 million cycles, it offers reliable protection for hazardous machinery environments.
Schmersal AZM161SK1212RKA024 Safety Interlock Specifications:
- Dimensions: 130 mm x 90 mm x 30 mm
- Housing Material: Thermoplastic, glass-fiber reinforced, self-extinguishing
- Contacts: 6, normally closed (NC) positive break contact
- Material of contacts: Silver
- Cable entries: 4 M16 x 1.5
- Interface: Screw connection
- Electrical connection: Screw terminal
- Cable section: 0.75 mm² to 1.5 mm²; including ferrules
- Rated control voltage: 24 VAC/DC
- Power consumption: Max. 10 W
- Switching principle: Mechanical, positive break NC contact
- Design of control element: Creep circuit element
- Mechanical life: Over 1,000,000 operations
- Environmental conditions: Min -25°C, Max +60°C, IP67
- Protection class: IP67 per IEC/EN 60529
- Ambient temperature: -25°C to +60°C
- Emergency release: Manual, with accessory key
- Material of housing: Plastic, self-extinguishing
- Weight: 500 grams
- Standards: EN ISO 13849-1, IEC 60947-5-1
Buy the Buy Schmersal AZM 161SK-12/12RK-024 Part Number AZM 161SK-12/12RK-024 Online
Order the Schmersal AZM 161SK-12/12RK-024 safety interlock online today for reliable guard safety in industrial applications. Featuring a durable thermoplastic enclosure, manual and emergency releases, and over a million operational cycles, this high-quality switch ensures optimal protection for machinery and personnel. Ideal for safeguarding sliding, hinged, and removable guards, it complies with international safety standards like EN ISO 13849-1. Purchase now for quick delivery and ensure your safety systems are ready for demanding industrial environments.
Get Schmersal AZM 161SK-12/12RK-024 today—built for precision, safety, and long-lasting durability in industrial automation.
Frequently Asked Questions
Where can I buy Schmersal AZM161SK1212RKA024?
You can click on the BUY or RFQ button to purchase AZM161SK1212RKA024 from an authorized Schmersal distributor.
How do I troubleshoot issues or seek technical support for part AZM161SK1212RKA024?
You can download the AZM161SK1212RKA024 datasheet or visit the Schmersal website for support.
Who is the manufacturer of AZM161SK1212RKA024?
Schmersal
