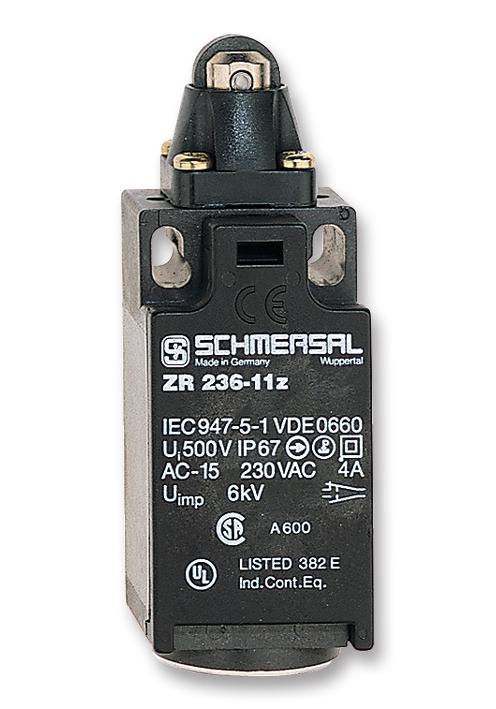

Schmersal ZR23611ZM20 Safety Switch
This safety switch features a thermoplastic enclosure with excellent resistance to oil and petroleum spirit, making it suitable for industrial safety applications. It includes a roller plunger actuator, snap action with constant contact pressure, and a mounting design compliant with EN 50047 standards. The device has a compact size of 30mm x 58.5mm x 30mm, with IP67 protection, gold-plated contacts, and is capable of handling up to 20 million operations. It supports various actuator options, including offset and angle levers, for flexible deployment in safety and automation systems.
Schmersal ZR23611ZM20 Safety Switch Specifications:
- Enclosure Material: Thermoplastic, self-extinguishing
- Protection Class: IP67
- Dimensions: 30mm x 58.5mm x 30mm
- Switching Principle: Snap action, positive break NC contact
- Contacts: Gold-plated, 1 piece each of normally open (NO) and normally closed (NC)
- Rated Impulse Voltage: 6kV
- Rated Insulation Voltage: 50 V
- Operating Current: AC-15: 4A at 230V, DC-13: 1A at 24V
- Mechanical Life: 20,000,000 operations
- Switching Frequency: Max. 5000 operations/hour
- Ambient Temp: -30°C to +80°C
- Electrical Data: Max switching current 10A, Thermal Current Ie: 6A
- Connector: M12 with A- or B-coding (optional)
- Cable Entry: NPT 1/2" or M20x1.5
- Actuator Types: Roller plunger, offset lever, or angle lever
- Mounting: EN 50047 compliant, transverse slotted holes
- Certifications: EN ISO 13849-1, CE, CCC
- Compliance: Suitable for safety-related functions
Buy the Schmersal ZR 236-11Z – Reliable Safety Switch for Industrial Applications
Secure your system with the Schmersal safety switch, featuring a rugged thermoplastic enclosure, gold-plated contacts, and IP67 protection. Designed for safety-critical applications, this switch offers long operational life up to 20 million cycles and supports various actuator options including roller and lever types. Its compact size of 30mm x 58.5mm x 30mm allows easy installation in confined spaces. Certified according to EN ISO 13849-1, it guarantees compliance with industry safety standards. Purchase online now for dependable performance in your safety circuits.
Order your Schmersal ZR 236-11Z safety switch today and ensure the safety and reliability of your industrial automation systems with proven quality.
Frequently Asked Questions
Where can I buy Schmersal ZR23611ZM20?
You can click on the BUY or RFQ button to purchase ZR23611ZM20 from an authorized Schmersal distributor.
How do I troubleshoot issues or seek technical support for part ZR23611ZM20?
You can download the ZR23611ZM20 datasheet or visit the Schmersal website for support.
Who is the manufacturer of ZR23611ZM20?
Schmersal
