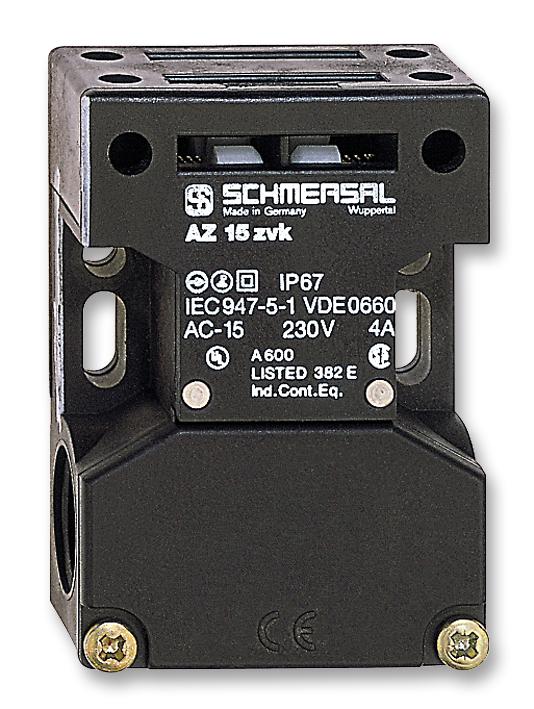

Schmersal AZ15ZVRKM20 Safety Switch
The AZ 15 Safety Switch features a thermoplastic enclosure, with double insulation and a long service life. Measuring 52mm x 75mm x 30mm, it offers a large wiring compartment and multiple coding options for enhanced security. Equipped with high contact reliability at low voltages and currents, it includes features like slotted and circular holes for adjustment and location. The switch supports M16x 1.5 cable entries, complies with EN ISO 13849-1 standards, and has a mechanical life exceeding 1 million operations. It is suitable for safety applications requiring durable, reliable interlocks in industrial environments.
Schmersal AZ15ZVRKM20 Safety Switch Specifications:
- Material of housings: Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
- Material of contacts: Silver
- Dimensions of sensor: 52mm (W) x 75mm (H) x 30mm (L)
- Cable entries: M16x 1.5, 3 cable entries
- Protection class: IP67 to IEC/EN 60529
- Switching principle: Creep circuit element
- Number of safety contacts: 1 normally-closed (NC)
- Rated impulse withstand voltage: 6kV
- Rated insulation voltage U: 500 V
- Max fuse rating: 10A
- Ambient temperature: -30°C to +80°C
- Mechanical life: > 1,000,000 operations
- Standards: EN ISO 13849-1, BG-GS-ET-15
- Weight: 100g
- Protection against dirt ingress: Yes (with optional accessories)
Buy the Buy SCHMERSAL Safety Switch Part Number AZ15ZVRK Online
Purchase the SCHMERSAL Safety Switch AZ 15 online today for reliable, long-lasting safety interlock solutions suitable for industrial environments. With durable thermoplastic housing, multiple coding options for security, large wiring compartments, and compliance with relevant safety standards, it provides exceptional contact reliability at low voltages. Its IP67 protection class ensures durability against dust and water ingress, making it ideal for heavy-duty applications. Easy to install and use, this safety switch guarantees a high degree of operational reliability and safety compliance across a wide range of automation and safety systems.
Order your SCHMERSAL Safety Switch AZ 15 with high durability and secure interlocking features today and ensure dependable safety in your industrial applications.
Frequently Asked Questions
Where can I buy Schmersal AZ15ZVRKM20?
You can click on the BUY or RFQ button to purchase AZ15ZVRKM20 from an authorized Schmersal distributor.
How do I troubleshoot issues or seek technical support for part AZ15ZVRKM20?
You can download the AZ15ZVRKM20 datasheet or visit the Schmersal website for support.
Who is the manufacturer of AZ15ZVRKM20?
Schmersal
