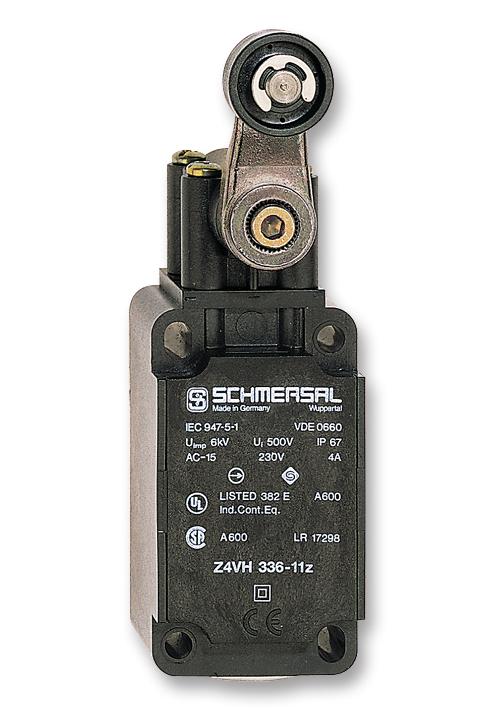

Schmersal Z4VH33611ZM20 Position Switch
The ZAVH 336-11Z is a versatile position switch housed in a thermoplastic enclosure, designed to comply with EN 50041 standards. It features snap action with constant contact pressure up to switching points, adjustable lever angles in 10° steps, and wide actuator options including repositionable heads. Its compact size is 40.5 x 76 x 38 mm, with M20x1.5 cable entry. Suitable for safety functions, it has a double-insulated design, resistance to oil and petroleum spirit, and supports extensive electrical and mechanical specifications for industrial automation applications.
Schmersal Z4VH33611ZM20 Position Switch Specifications:
- Enclosure Material: Thermoplastic, glass-fibre reinforced, self-extinguishing
- Contact Type: Normally-closed (NC), Snap action
- Contact Material: Silver
- Leakage Current: 410A
- Rated Impulse Withstand Voltage: 6kV
- Rated Insulation Voltage: 50 V
- Switching Current: AC-15: 230V/4A, DC-13: 24V/1A
- Mechanical Life: 30,000,000 operations
- Max Switching Frequency: 5000 times/hour
- Operating Temperature Range: -30°C to +80°C
- Protection Class: P67
- Dimensions: Width 40.5 mm, Height 129.5 mm, Length 60.5 mm
- Cable Entry: M20x1.5 or optional NPT 1/2"
- Weight: 165 grams
- Design: Normal construction with screw connection
- Electrical Connection: Screw terminals or optional M12 connector
- Approvals: EN ISO 13849-1, CCC, CE
Buy the Buy Industrial Position Switch Part Number Z4VH33611ZM20 Online
Purchase the precision-engineered position switch ZAVH 336-11Z online today. Designed with robust thermoplastic enclosure, adjustable lever angles, and multiple actuator options, it ensures reliable operation in safety applications. Its compact size, high mechanical life of 30 million operations, and certifications make it ideal for demanding industrial environments. Easy to install with screw or M12 connectors, this switch supports extensive electrical ratings for AC-15 and DC-13 circuits. Experience quality, durability, and safety—order now for prompt delivery and expert support.
Get ZAVH 336-11Z safety position switch today—engineered for precision, durability, and reliable safety functions in industrial automation.
Frequently Asked Questions
Where can I buy Schmersal Z4VH33611ZM20?
You can click on the BUY or RFQ button to purchase Z4VH33611ZM20 from an authorized Schmersal distributor.
How do I troubleshoot issues or seek technical support for part Z4VH33611ZM20?
You can download the Z4VH33611ZM20 datasheet or visit the Schmersal website for support.
Who is the manufacturer of Z4VH33611ZM20?
Schmersal
