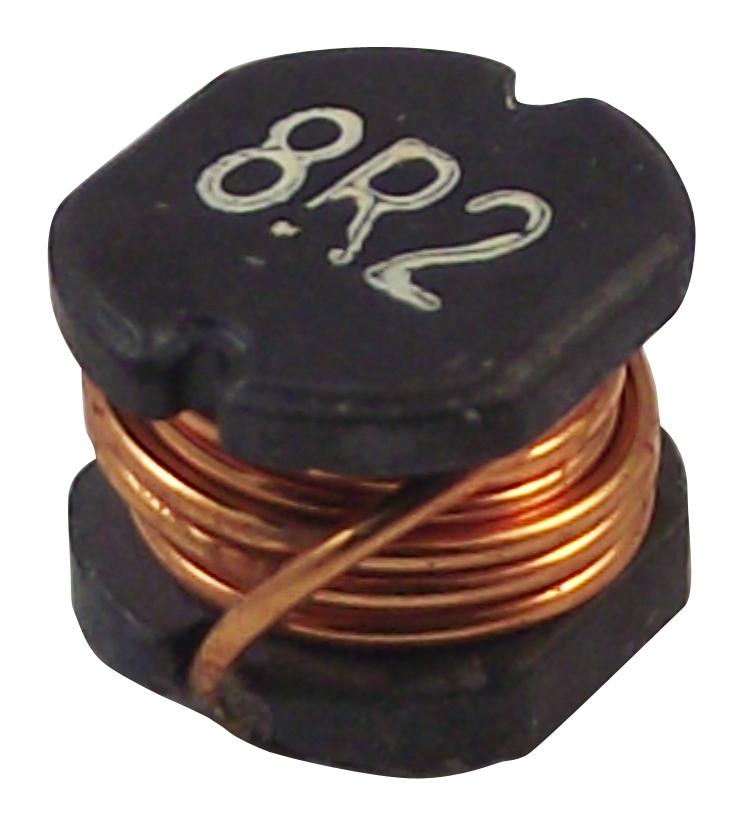

TRACO POWER TCK077 Power Inductor
The TCK-077 is a high-quality inductor designed for electronic applications, featuring an inductance of 8.2 microhenries with a tolerance of ±20% at 1 kHz and 250 mV. It has a maximum impedance of 80 milliohms and a rated current of 1.5 amps, capable of operating across temperatures from -40°C to +125°C. Its compact outline dimensions include a length of 5.2 mm, width of 5.8 mm, and height of 4.5 mm, making it suitable for various power supply and filtering circuits, with durable construction for reliable performance.
TRACO POWER TCK077 Power Inductor Specifications:
- Inductance: 8.2 microhenries ±20% at 1 kHz and 250 mV
- Impedance (DCR): 80 mOhm max.
- Rated Current: 1.5 A
- Operating Temperature: -40°C to +125°C
- Outline Dimensions: Length 5.2 mm, Width 5.8 mm, Height 4.5 mm
- Material: Ferrite core with copper wire winding
- Impedance Curve: Provided for frequency response
- PCB Pattern: Specified for mounting
- Certifications: Not specified
- Manufactured by: Traco Power
Buy the Traco Power Series TCK Inductor: TCK-077
Enhance your electronic projects with the Traco Power TCK-077 inductor. Featuring an inductance of 8.2 microhenries, rated at 1.5 amps, and operating across a wide temperature range from -40°C to +125°C, it’s ideal for power supply filtering, noise suppression, and circuit stability. Its compact dimensions of 5.2x5.8x4.5mm ensure versatile mounting options. Crafted for reliability and performance, this high-quality inductor is essential for high-demand electronic applications and can be easily purchased online for your project needs.
Get Traco Power TCK-077 today—built for efficient power filtering and durable operation in demanding circuits.
Frequently Asked Questions
Where can I buy TRACO POWER TCK077?
You can click on the BUY or RFQ button to purchase TCK077 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TCK077?
You can download the TCK077 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TCK077?
TRACO POWER
