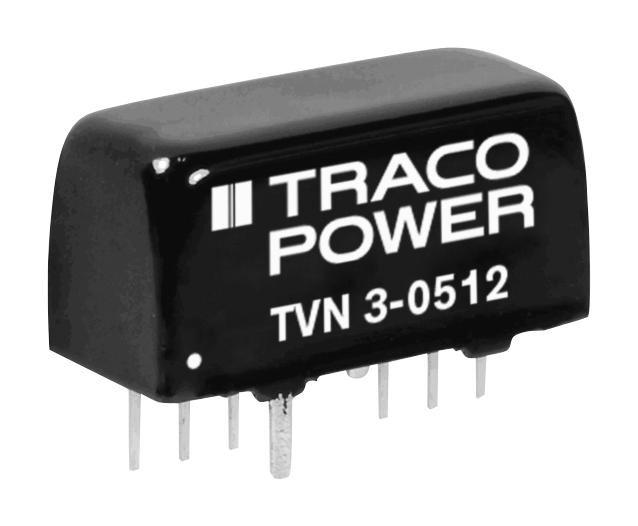

TRACO POWER TVN32415 DC/DC Converter
The TVN 3 Series comprises ultra low ripple and noise 3 Watt DC/DC converters in a compact SIP-8 package, offering fully regulated outputs with an input voltage range of 4.5-13.2 VDC and extended models up to 75 VDC. Features include 1/0-isolation of 1600 VDC, short circuit protection, no minimum load requirement, and operation over -40°C to +90°C. Suitable for space-constrained applications, these reliable converters are ideal for industrial, automation, and control systems needing high efficiency and stable power supply.
TRACO POWER TVN32415 DC/DC Converter Specifications:
- Input Voltage Range: 4.5-13.2 VDC, 9-18 VDC, 18-36 VDC, 36-75 VDC
- Output Power: 3 Watt
- Output Voltage Options: 3.3 VDC, 5 VDC, 9 VDC, 12 VDC, 15 VDC, 24 VDC, 42 VDC, 48 VDC
- Maximum Output Current: 700 mA to 300 mA depending on model
- Efficiency: 74% to 85%
- Isolation Voltage: 1,600 VDC
- Operating Temperature: -40°C to +90°C
- Ripple & Noise: 10 mVp-p typ.
- Start-up Voltage: 4.5 VDC to 18 VDC
- Short Circuit Protection: Yes, automatic recovery
- Dimensions: Compact SIP-8 package, approximately 19.8 x 9.4 x 12 mm
- Case Material: Copper, with silicone potting (UL 94V-0 rated)
- Humidity: 5–95% RH non-condensing
- Thermal Derating: 3.3%/K above 75°C
- MTBF: 5,600,000 hours
- Regulation Accuracy: ±1%
- Conducted Noise: 15 mVp-p without external components, 10 mVp-p with 10uF capacitor
Buy the Traco Power TVN3 Series Reliable DC-DC Converter for Industrial Applications
Enhance your power management system with the Traco Power TVN3 Series DC-DC converters. Designed for industrial, automation, and control systems, these 3-watt modules deliver ultra-low ripple, high efficiency, and wide input voltage compatibility. With 1,600 VDC isolation, compact SIP-8 packaging, and no minimum load requirements, they ensure reliable operation from -40°C to +90°C. Trust Traco Power for durable, high-performance solutions that optimize your space and power quality—order online today and elevate your project’s reliability.
Buy Traco Power TVN3 Series smart DC/DC converter now and experience unmatched reliability and performance for your industrial projects.
Frequently Asked Questions
Where can I buy TRACO POWER TVN32415?
You can click on the BUY or RFQ button to purchase TVN32415 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TVN32415?
You can download the TVN32415 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TVN32415?
TRACO POWER
