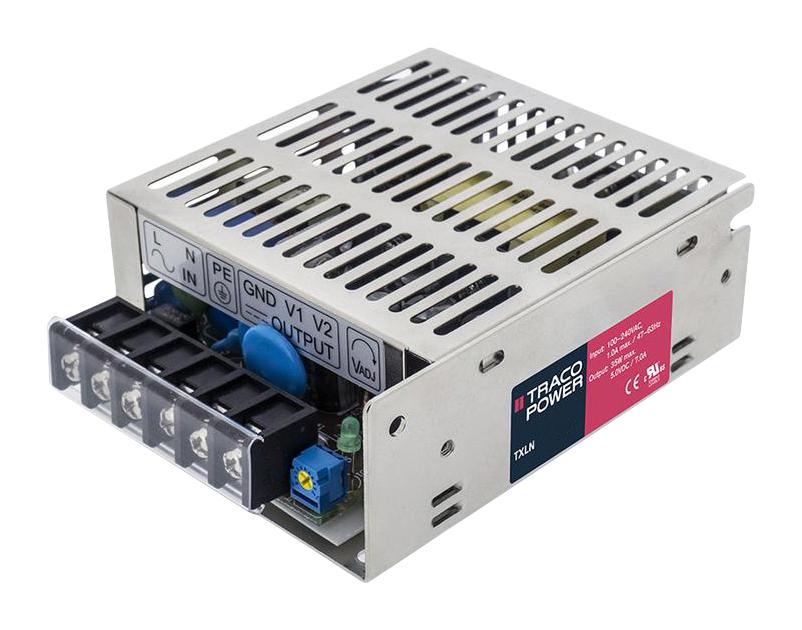

TRACO POWER TXLN035112 Power Supply
The TXLN 035 series is a family of compact, landscape-oriented power supplies housed in a durable metal enclosure. Designed for cost-sensitive applications, these units feature a low-profile aluminum casing and screw terminal connections for easy installation. They support universal input voltage of 88-264VAC and are compliant with European EMC standards and the Low Voltage Directive (LVD). The convection-cooled power supplies offer high efficiency up to 82%, with protections against short circuits, overvoltage, and overload. They have IEC/EN/UL 62368-1 safety approvals, operate over a temperature range of -20°C to +70°C, and include a 3-year warranty. The units are prepared for connection to protective earth (PE) and are rated for pollution degree 2 and overvoltage category II, with a switching frequency between 58kHz and 72kHz (PWM).
TRACO POWER TXLN035112 Power Supply Specifications:
- Input Voltage: 88-264 VAC, 125-375 VDC
- Input Frequency: 50-63 Hz
- Output Power: 35 W
- Output Voltage: 3.3 V, 5 V, 15 V, 24 V, 48 V, +5V/+12V, +5V/+24V, +12V/-12V, +15V/-15V
- Output Current: 9A, 7A, 3A, 1.5A, 0.8A, 4A/+12.5A, 4A/+1.3A, 3A/1.5A, 2.4A/1.5A
- Efficiency: Up to 86%
- Protection: Short circuit, overvoltage, overload
- Safety Certifications: IEC/EN/UL 62368-1
- Operating Temperature Range: -20°C to +70°C
- Cooling: Natural convection
- Housing Material: Aluminum
- Connection: Screw terminal block
- Isolation Voltage: Input to output 3000 VAC, input to case 1500 VAC
- Pollution Degree: 2
- Overvoltage Category: II
- Switching Frequency: 58-72 kHz
- Dimensions: Approximately 80 x 30 x 25 mm
- Weight: 340-350 g
- Humidity: Max 90% non-condensing
Buy the Buy Traco Power Power Supply Part Number TXLN035112 Online
Order the Traco Power TXLN 035112 power supply online today to benefit from high efficiency, robust protection features, and easy screw terminal installation. With universal input voltage, reliable performance, and compliance with safety standards, this 35W unit is ideal for cost-critical applications requiring durable and efficient power solutions. Enjoy quick delivery, secure checkout, and dedicated customer support to ensure your equipment operates smoothly with this compact and versatile power supply.
Buy Traco Power TXLN035112 now and experience unmatched reliability and efficient power conversion in a compact design.
