TRACO POWER TCL024124DC Industrial DC/DC converter
The industrial DC to DC converter features a single output with a tightly regulated voltage and an ultra-wide input voltage range. It provides reliable power for sensitive equipment in critical industrial environments, supporting applications such as load isolation and bus voltage refreshing. The converter offers adjustable output voltage, overload and short-circuit protection, low ripple and noise, 1500VDC input/output isolation, and a compact, slim plastic case. Easy installation is facilitated by snap-on DIN-rail mountings and a detachable screw terminal block. It operates within a temperature range of -25°C to +70°C and has an IP20 protection rating, making it suitable for industrial automation and process control applications. Included accessories are a wall mount bracket.
TRACO POWER TCL024124DC Industrial DC/DC converter Specifications:
- Input Voltage Range: 9.5 - 18 VDC or 18 - 75 VDC depending on model
- Output Voltage: 5 VDC, 12 VDC, 24 VDC, adjustable within specific range per model
- Maximum Output Current: 1.0A to 20A depending on model
- Efficiency: 86% typ.
- Ripple and Noise: <50 mV pk-pk at 20 MHz bandwidth
- Isolation Voltage (Input/Output): 1500 VDC
- Operating Temperature: -25°C to +70°C
- Storage Temperature: -25°C to +85°C
- Protection: Overload, short circuit, overvoltage, reverse polarity
- Enclosure Material: UL 94V-0 rated plastic
- Mounting: DIN-rail snap-on, includes wall mount bracket
- Certifications: UL/CSA, IEC 60950-1, EN 61000-6-3, EN 61000-6-2
- Switching Frequency: 55–180 kHz depending on load
- Dimensions: Approximately 94 mm x 50 mm x 25 mm
- Weight: 140 g (model TCL 024-124DC)

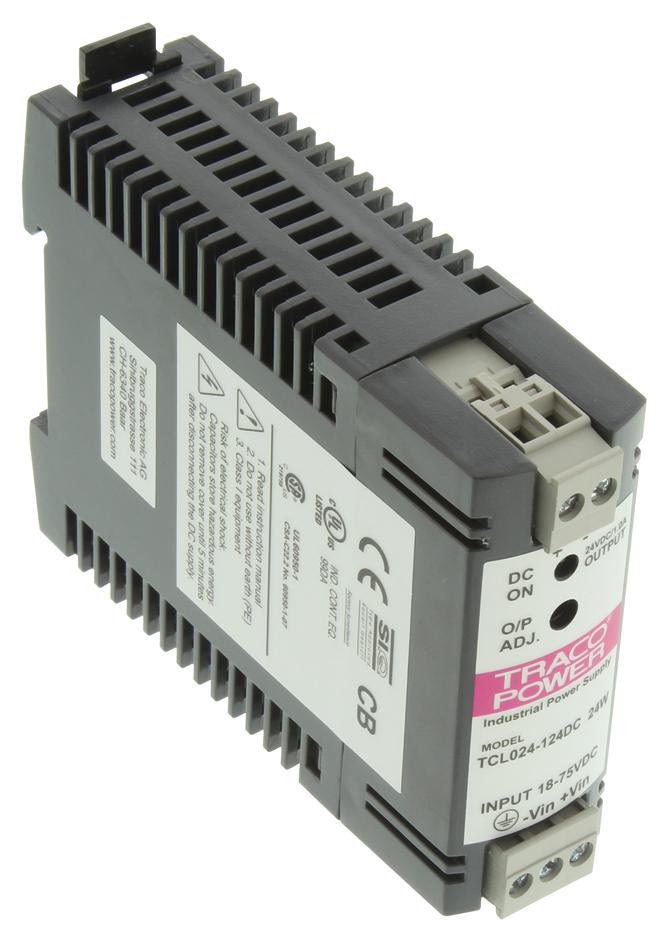

Buy the Trac Power Series TCL DC Power Supply: TCL024124DC
Order the Trac Power TCL024124DC industrial DC/DC converter online today and ensure reliable, efficient power for sensitive equipment. Designed for harsh environments, it features adjustable voltage, overload and short-circuit protection, low ripple, and 1500VDC isolation. Its compact design and easy DIN-rail or wall mount installation make it ideal for automation, process control, and factory automation. With a wide input voltage range from 9.5 to 75VDC, high efficiency, and safety certifications, this converter guarantees dependable operation and long-term durability for industrial applications.
Get Trac Power TCL024124DC today—built for precision, reliability, and industrial assurance.
Frequently Asked Questions
Where can I buy TRACO POWER TCL024124DC?
You can click on the BUY or RFQ button to purchase TCL024124DC from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TCL024124DC?
You can download the TCL024124DC datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TCL024124DC?
TRACO POWER
