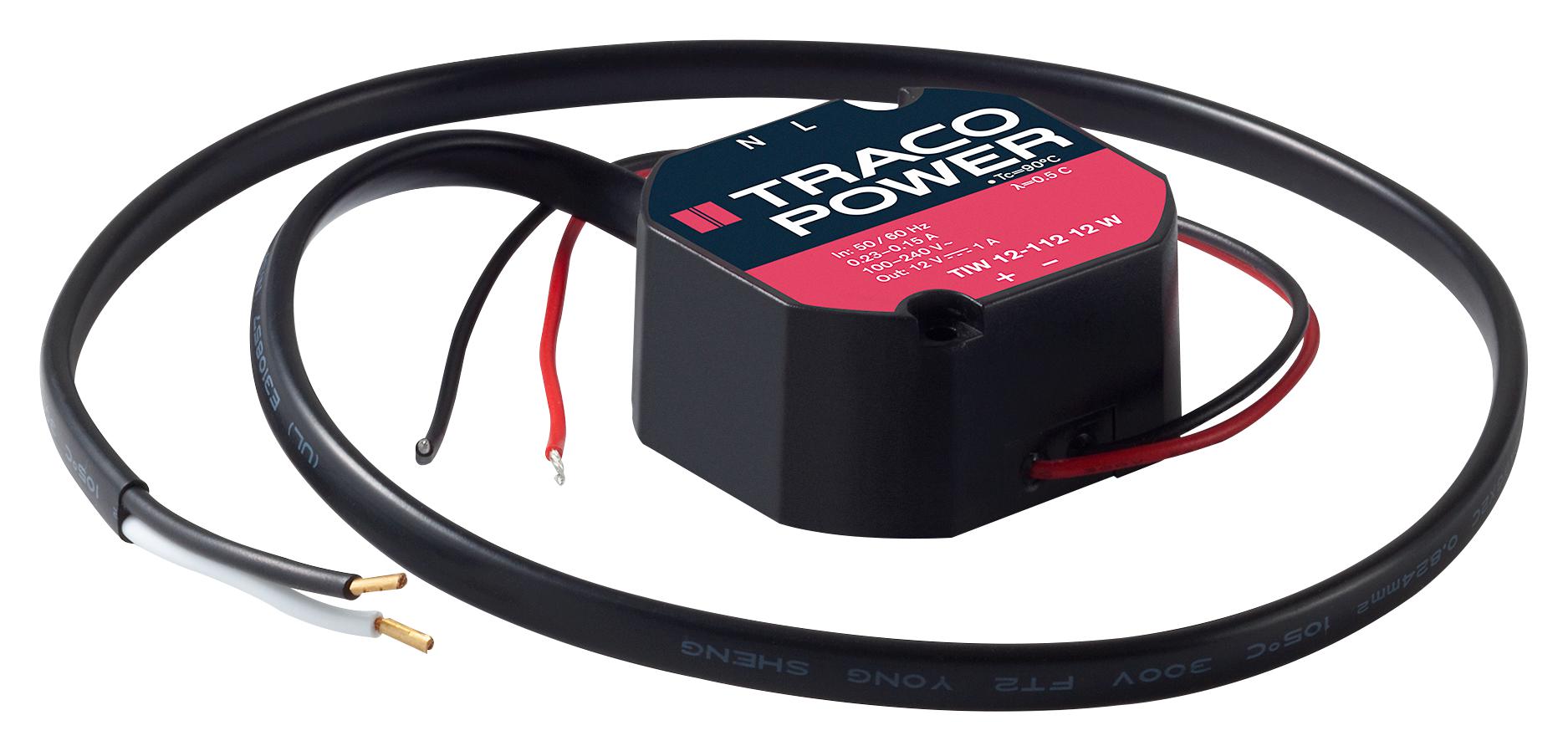

TRACO POWER TIW06106 Power Supply Module
The TIW series comprises compact, highly efficient switching power supplies designed for home and office automation. Fully encapsulated in IP67-rated plastic housing, these units are dustproof, waterproof, and suitable for mounting in standard flush boxes or on walls. They feature universal input voltage ranges from 93 to 264 VAC, regulated outputs from 3.3 to 24 VDC, and operate in temperatures from -25°C to +50°C. Certified for IEC/EN safety standards, they include short circuit, overload, and over-temperature protection, making them ideal for powering DC motors, sensors, and controllers in residential and commercial environments.
TRACO POWER TIW06106 Power Supply Module Specifications:
- Input Voltage Range: 93-264 VAC, 47-63Hz
- Rated Power: 4W to 24W depending on model
- Output Voltage: 3.3V, 5V, 6V, 12V, 15V, 24V (models vary)
- Output Current: Up to 20A (depending on model)
- Efficiency: Up to 85%
- Mounting: Fits standard flush boxes or wall mounting
- Housing: Fully encapsulated IP67-rated plastic
- Operating Temperature: -25°C to +50°C
- Protection: Short circuit, overload, over-temperature, foldback current limiting
- Certifications: IEC/EN 60950-1, UL 1310, CB, CE, RoHS
- Ripple & Noise: <200 mVp-p at 20 MHz bandwidth
- Start-up Time: <1s
- Environmental: Dustproof, waterproof, vibration and shock resistant
- Safety and EMC Standards: IEC, EN, UL, CSA compliant
Buy the Buy Traco Power TIW Series Part Number TIW06106 Online
Purchase the Traco Power TIW series power supply module online today. These compact and waterproof units offer universal input voltages from 93 to 264 VAC and provide regulated outputs up to 24 VDC. Designed for ease of installation in standard flush boxes or on walls, they meet all safety and EMC standards for residential and commercial use. Features include overcurrent, short circuit, and over-temperature protection. Ideal for powering controllers, sensors, and DC motors in automation and security systems, ensuring long-lasting performance and safety.
Get Traco Power TIW series power supply today—compact, waterproof, and certified for reliable home and industrial automation applications.
Frequently Asked Questions
Where can I buy TRACO POWER TIW06106?
You can click on the BUY or RFQ button to purchase TIW06106 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TIW06106?
You can download the TIW06106 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TIW06106?
TRACO POWER
