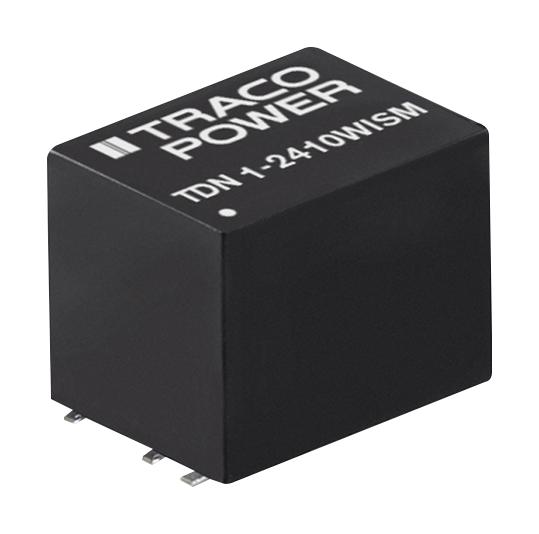

TRACO POWER TDN12423WISM DC/DC Converter
The TDN 1WISM Series offers high-performance, compact 1-watt regulated DC/DC converters designed for space-constrained applications. Featuring a small 13.2 x 9.1 x 10.2 mm SMD package, these converters provide fully regulated outputs with 1/0 isolation of 1600 VDC, suitable for various industrial, automation, and electronics projects. They operate reliably from -40°C to +90°C without derating, include short circuit protection, and support remote On/Off control. Certified for safety standards (UL 62368-1, UL 60950-1) and designed for broad voltage input ranges, they are ideal for compact, efficient power supplies in demanding environments.
TRACO POWER TDN12423WISM DC/DC Converter Specifications:
- Power: 1 Watt
- Package: 13.2 x 9.1 x 10.2 mm SMD
- Input Voltage Range: 4.5 - 18 VDC, 9-36 VDC, 18-75 VDC, or specified models
- Output Voltage: 4.5 V, 5 V, 9 V, 12 V, 15 V, 24 V, 48 V, or dual outputs with specific current limits
- Output Current Max: 70 mA to 300 mA depending on model
- Efficiency: Up to 81%
- Isolation Voltage: 1600 VDC
- Operating Temperature: -40°C to +90°C without derating, derate at 6.7%/K above 90°C
- Ripple & Noise: 30 mVp-p typical
- Start-up Time: <10 ms
- Surge Voltage: Up to 100 V max
- Short Circuit Protection: Continuous, automatic recovery
- Physical: Non-conducting plastic case, silicone potting
- Weight: 2.7 g
- Certifications: UL 62368-1, UL 60950-1, RoHS
- Isolation: 1600 VDC, 50 pF max capacitance, >1 GΩ resistance
Buy the Traco Power TDN-12423WISM – Reliable DC/DC Converter for Industrial Applications
Enhance your power management systems with the Traco Power TDN 12423WISM series, a reliable 1-watt regulated DC/DC converter featuring high efficiency, broad input voltage range, and excellent isolation. Its compact size makes it perfect for space-limited applications, including industrial electronics and automation projects. Designed to operate from -40°C to +90°C, it provides stable outputs with integrated short circuit protection and remote On/Off capability. Certified safety standards ensure safety and compliance, making it an ideal choice for demanding professional environments.
Order your Traco Power Series TDN 12423WISM DC/DC converter today and give your electronic projects the dependable power they need for demanding environments.
Frequently Asked Questions
Where can I buy TRACO POWER TDN12423WISM?
You can click on the BUY or RFQ button to purchase TDN12423WISM from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TDN12423WISM?
You can download the TDN12423WISM datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TDN12423WISM?
TRACO POWER
