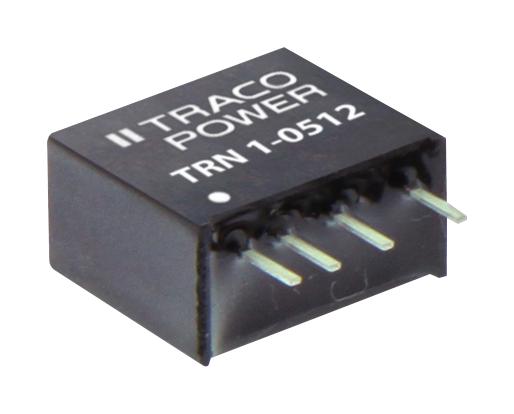

TRACO POWER TRN11211 DC/DC Converter
The TRN 1 Series is a compact 1-Watt DC/DC converter family designed for space-constrained applications. Featuring fully regulated, high-performance outputs and an input voltage range of 4.5-13.2, 9-18, 18-36, or 36-75 VDC, they provide reliable operation at temperatures up to 90°C. Key features include 1600 VDC input/output isolation, short circuit protection, and compliance with UL 62368-1 and UL 60950-1 standards. Their small SIP package measures 11.9 x 7.7 x 11.0 mm, ideal for industrial, automation, or medical systems requiring stable power with minimal space.
TRACO POWER TRN11211 DC/DC Converter Specifications:
- Input Voltage Range: 4.5-13.2, 9-18, 18-36, 36-75 VDC
- Output Power: 1 Watt
- Output Voltage Options: 3.3 VDC, 5.0 VDC, 12 VDC, 24 VDC, 36-75 VDC
- Maximum Output Current: 300 mA (varies by model)
- Efficiency: Up to 83%
- Isolation Voltage: 1600 VDC input/output
- Operating Temperature Range: -40°C to +90°C
- Dimensions: 11.9 x 7.7 x 11.0 mm
- Package Type: SIP
- Short Circuit Protection: Yes
- Compliance: UL 62368-1, UL 60950-1
- Reliability MTBF: 7,400,000 hours
- Soldering Temperature: 260°C for 6 seconds
- Casing Material: Non-conductive plastic
- Potting Material: Silicone UL 94V-0
- Weight: 24 grams
Buy the Traco Power Series TRN 1 DC/DC Converter: TRN11211
Discover the reliable and compact Traco Power Series TRN 1 DC/DC converter, designed for space-limited applications. With wide input voltage ranges from 4.5 to 75 VDC, fully regulated outputs, and 1600 VDC isolation, this converter ensures stable power delivery under challenging conditions. Its small SIP package measures just 11.9 x 7.7 x 11.0 mm, making it ideal for industrial, automation, or medical devices. Built with short circuit protection and UL certification, it guarantees safety, longevity, and dependable performance for demanding applications.
Order your Traco Power Series TRN 1 DC/DC Converter TRN11211 today and give your projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy TRACO POWER TRN11211?
You can click on the BUY or RFQ button to purchase TRN11211 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TRN11211?
You can download the TRN11211 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TRN11211?
TRACO POWER
