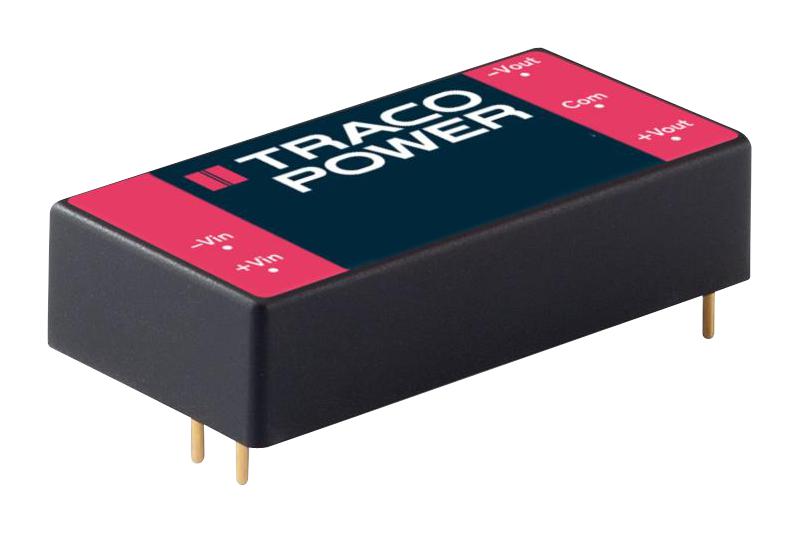

TRACO POWER TRI202415 DC/DC Converter
The TRI 20 series is a high-reliability, regulated 20 Watt DC/DC converter series designed for demanding industrial, transportation, and instrumentation applications. Its compact 2''x1'' package features reinforced isolation capable of withstanding high test voltages of up to 8000 VDC for 1s and a working voltage of 1000 VAC. It offers a wide input range of 9-75 VDC, high efficiency up to 90%, and includes safety certifications like IEC/EN/UL 62368-1. The device provides excellent transient immunity, low no-load power consumption, and robust overcurrent or overvoltage protection, ensuring optimal performance in harsh environments.
TRACO POWER TRI202415 DC/DC Converter Specifications:
- Input Voltage Range: 9-75 VDC with 2:1 ratio
- Rated Input Voltage: 12 VDC, 24 VDC, 48 VDC, 36-75 VDC
- Output Power: 20 Watts
- Efficiency: Up to 90%
- Isolation Voltage: 8000 VDC (1s), 5940 VDC (60s), working voltage 1000 VAC
- Operating Temperature Range: -40°C to +76°C, derating to +55°C
- Dimensions: 2''x1''x0.4'' (50.8mm x 25.4mm x 10mm)
- Protection: Overload, overvoltage, short circuit; continuous, automatic recovery
- Transient immunity: 15 kV/µs
- Pollution Degree: PD 2
- Standards: IEC/EN/UL 62368-1
- Weight: 30g
- Soldering Temperature: Wave soldering at 260°C for 10s
Buy the Traco Power TRI 20-2415 Reliable DC/DC Converter for Industrial Applications
Enhance your projects with the high efficiency and reinforced isolation of the Traco Power TRI 20-2415 series DC/DC converter. With a wide 9-75 VDC input range, it provides precisely regulated output voltages suitable for industrial, transportation, and instrumentation applications. Its compact design, high safety certifications, and robust protection features ensure reliable performance even in challenging environments. Order online today and experience the dependable power quality that ensures your systems operate smoothly and safely, backed by a 3-year warranty.
Order your Traco Power TRI 20-2415 series 20 Watt DC/DC converter today and ensure your industrial, transportation, or instrumentation projects operate with dependable power stability.
