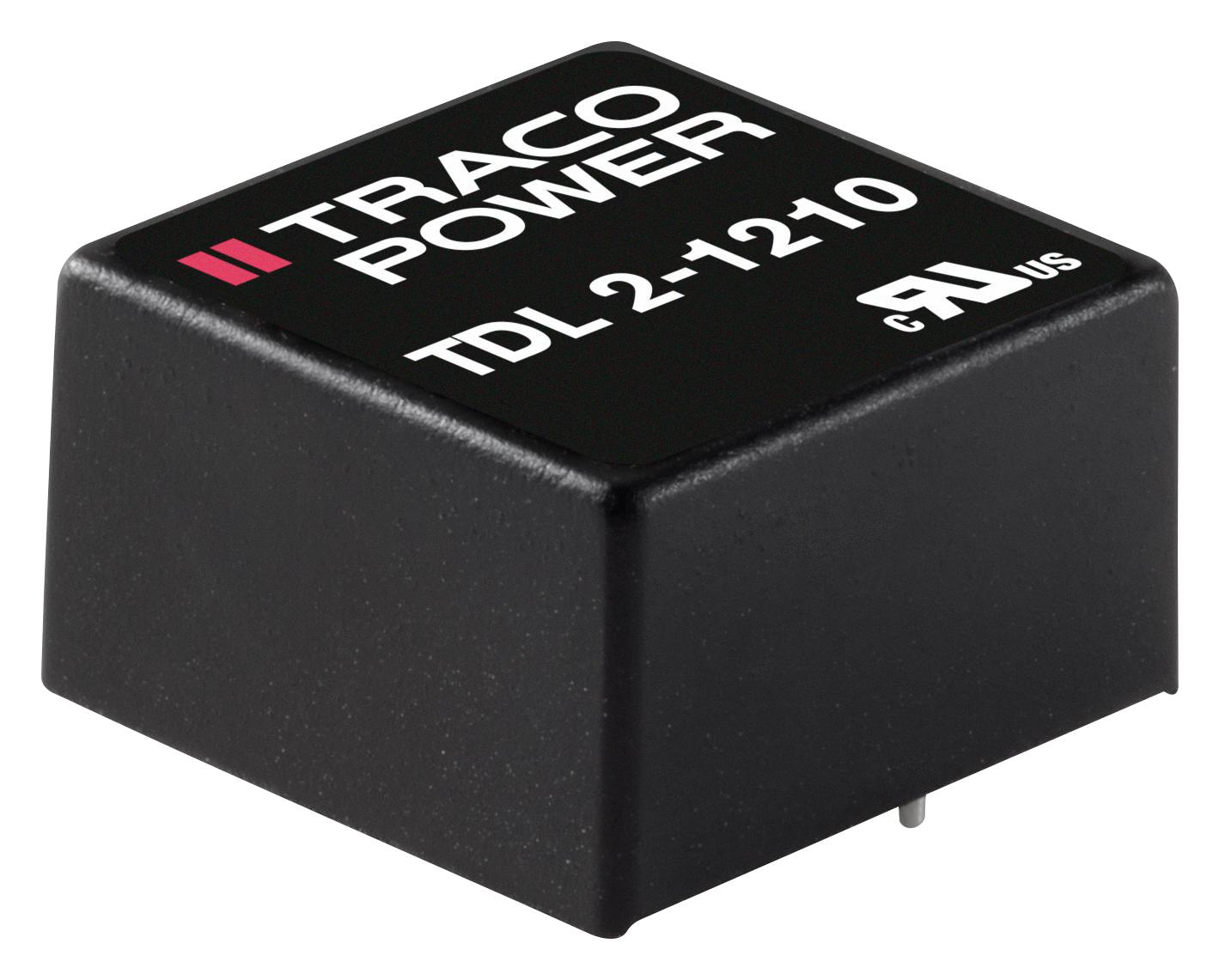

TRACO POWER TDL21210 DC/DC Converter
The TDL 2 series from TracoPower comprises compact 2W DC/DC converters with single or dual regulated outputs. These converters feature a wide 2:1 input voltage range and come in a small DIP package measuring 14mm wide, 8mm high, and 14mm deep. Designed for reliable operation, they include automatic recovery short circuit protection and current limiting. Models support input voltages of 5V, 12V, 24V, or 48V DC and provide output voltages of 3.3V, 5V, 12V, 15V, ±5V, ±12V, or ±15V, with maximum output currents ranging from approximately 67mA to 400mA. They offer up to 87% efficiency, a switching frequency of at least 100kHz, and excellent isolation features (1500VDC for 60 seconds). Additional specifications include a typical ripple and noise of 70mVp-p, an isolation capacitance of 100pF, and an isolation resistance greater than 1GΩ. Certified under UL 60950-1 and IEC/EN 60950-1 standards, these converters operate from -40°C to 70°C and come with a three-year warranty.
TRACO POWER TDL21210 DC/DC Converter Specifications:
- Input Voltage: 5V, 12V, 24V, 48V DC
- Output Voltage: 3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V
- Output Current Max.: 67mA to 400mA depending on model
- Efficiency: Up to 87%
- Ripple and Noise: 70mVp-p (typ.)
- Isolation Voltage: 1500VDC for 60 sec
- Isolation Capacitance: 100pF
- Isolation Resistance: >1 GΩ
- Operating Temperature Range: -40°C to +70°C
- Switching Frequency: ≥100 kHz
- Short Circuit Protection: Automatic recovery
- Dimensions: 14mm x 14mm x 8mm (W x D x H)
- Package Material: Non-conducting FR4, silicone potting
- Pin Material: Tinned copper
- Certifications: UL 60950-1, IEC/EN 60950-1
Buy the TracoPower TDL 2 Series – Reliable DC/DC Converter for Industrial Applications
Purchase the TracoPower TDL 2 series DC/DC converters online today for efficient, reliable power conversion in industrial environments. With a compact DIP package, these 2W regulated converters support a wide input voltage range from 5V to 48V DC and provide multiple fixed and dual output voltages including 3.3V, 5V, 12V, and 15V. Their high efficiency up to 87%, excellent isolation of 1500VDC, and automatic short circuit recovery ensure robust performance. Ideal for industrial automation, control systems, and power supply applications, these converters meet UL and IEC safety standards and come with a 3-year warranty, making them a dependable choice for demanding projects.
Order your TracoPower TDL 2 series DC/DC converter today and ensure your power supply solutions are reliable, efficient, and compliant with industrial standards.
Frequently Asked Questions
Where can I buy TRACO POWER TDL21210?
You can click on the BUY or RFQ button to purchase TDL21210 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TDL21210?
You can download the TDL21210 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TDL21210?
TRACO POWER
