TRACO POWER TPP100148AJ Medical Power Supply
The TPP 100A-J series is a 100W open-frame medical power supply designed for high reliability and compliance with international safety standards, including IEC 60601-1 3rd edition for 2 x MOPP. It features active power factor correction (>0.95), low leakage current (<75 pA), and a wide input voltage range of 85-264 VAC. This ultra-compact device offers efficiencies up to 92%, operating temperature from -25°C to +55°C, and conforming EMC characteristics suitable for industrial and medical applications. It provides multiple output voltages, precise regulation, and robust protection, making it ideal for medical devices and space-critical applications.
TRACO POWER TPP100148AJ Medical Power Supply Specifications:
- Input Voltage AC Range 85 - 264 VAC, DC Range 120 - 370 VDC
- Input Frequency 47 - 63 Hz
- Input Current at full load, 230 VAC 550 mA, 115 VAC 1150 mA
- Power Consumption at no Load 300 mW max, no load power compliant with ErP
- Efficiency up to 92%
- Output Voltages: 12 V, 15 V, 24 V, 28 V, 36 V, 48 V with respective currents from 8.34 A to 2.09 A
- Output Voltage Adjustment ±10%, regulation within 1%, ripple up to 340 mVp-p
- Protection: Overvoltage 115-135%, Overcurrent 115-150%, Continuous short circuit
- Safety Standards IEC 60601-1 3rd edition, IEC 60950-1, UL 60950-1, EN 60601-1
- Insulation System Reinforced, Pollution Degree PD 2, Over Voltage Category OVC II
- Dimensions 76.2 mm x 69.8 mm x 29.5 mm, weight 156g
- Operating Temperature -25°C to +55°C, derating above 55°C
- Built-in Fuse 3.15 A/250 VAC, leakage current <75 uA
- Protection Class I, II prepared, natural convection cooling, altitude up to 5000 m

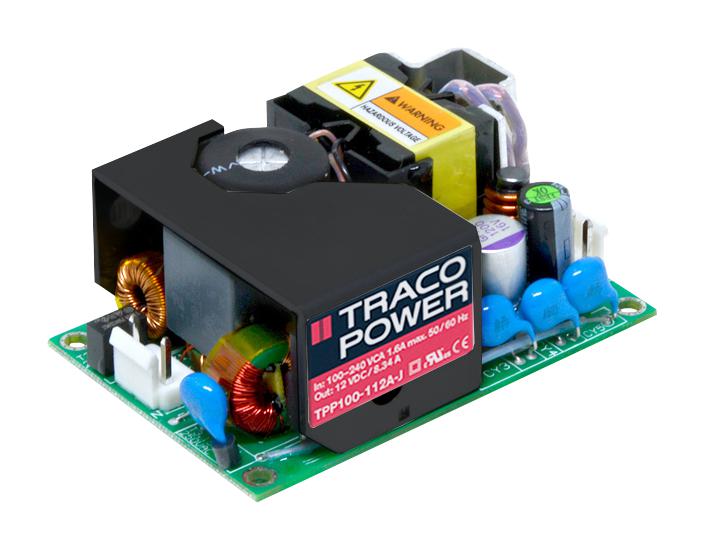

Buy the Buy Traco Power TPP 100A-J Part Number 100148AJ Online
Purchase the Traco Power TPP 100A-J medical power supply online today. Engineered for high reliability, efficiency up to 92%, and compliance with IEC 60601-1 standards, this 100W open-frame unit is perfect for medical and industrial applications. It features a broad input voltage range from 85-264 VAC, low leakage current below 75 pA, and comprehensive protections including overvoltage and overcurrent. Compact and thermally efficient, it ensures consistent performance in space-constrained environments, making it an ideal choice for demanding safety-critical devices.
Get Traco Power TPP 100A-J today—built for medical safety, high efficiency, and space-critical reliability.
Frequently Asked Questions
Where can I buy TRACO POWER TPP100148AJ?
You can click on the BUY or RFQ button to purchase TPP100148AJ from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TPP100148AJ?
You can download the TPP100148AJ datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TPP100148AJ?
TRACO POWER
