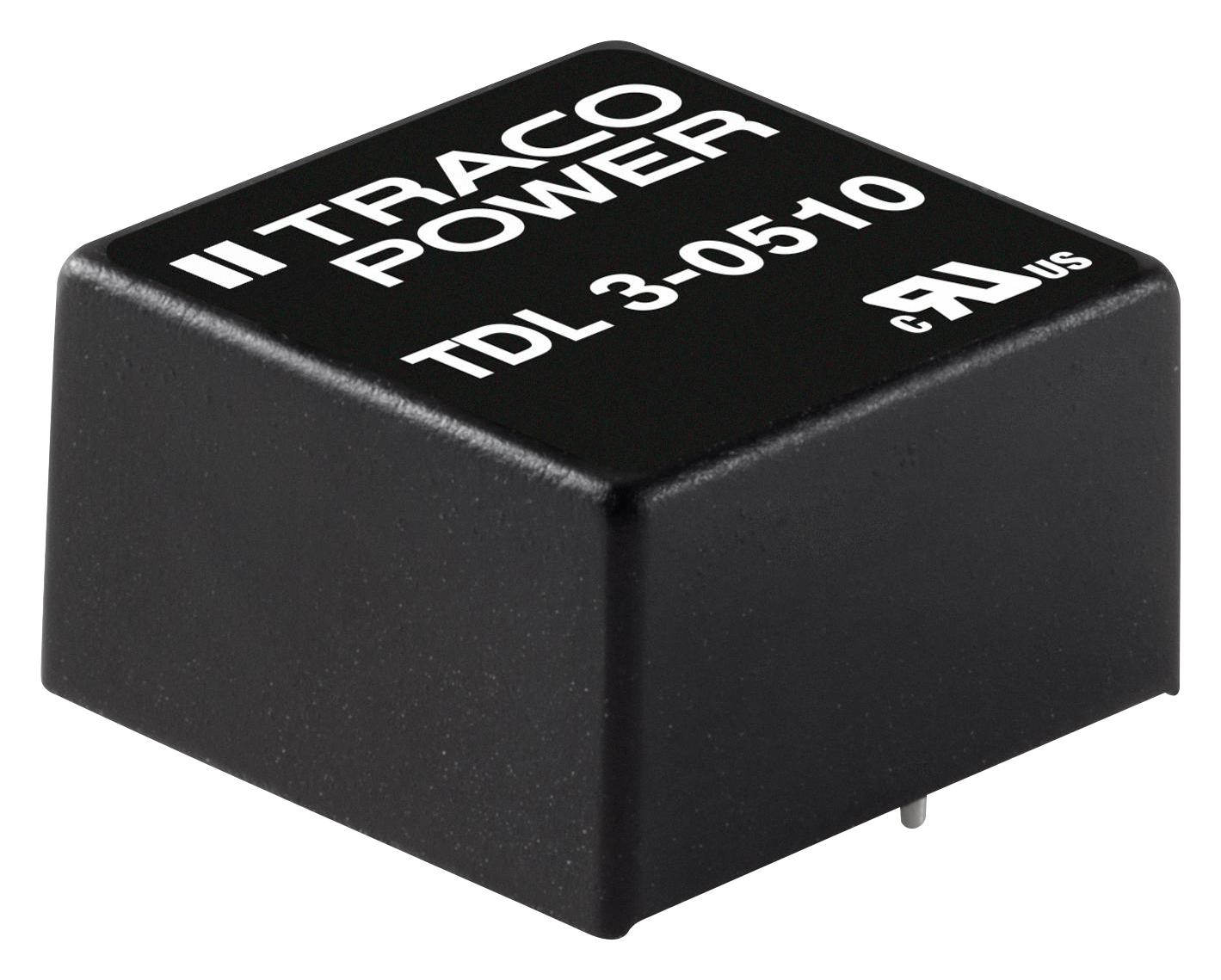

TRACO POWER TDL30513 DC-DC Converter
The TDL 3 series from TracoPower consists of compact 3W DC/DC converters with single or dual regulated outputs. These converters feature a wide input voltage range from 5V to 48V DC, depending on the model, and offer various output voltages including 3.3V, 5V, 12V, 15V, and bipolar options such as ±5V, ±12V, and ±15V. They are housed in a small DIP package measuring 14mm by 14mm by 8mm. These converters provide automatic, continuous short circuit and overload protection, with efficiency up to 87% and a switching frequency minimum of 100kHz. They offer an I/O isolation voltage of 1500V DC for 60 seconds, with an isolation capacitance of 100pF and resistance greater than 1 Gigaohm. The ripple and noise level at 20MHz bandwidth is typically 70mVp-p. Certified according to UL 60950-1 and IEC/EN 60950-1 safety standards, these modules operate over a temperature range of -40°C to 70°C and come with a 3-year warranty.
TRACO POWER TDL30513 DC-DC Converter Specifications:
- Input Voltage Range: 5V to 48V DC depending on model
- Output Voltages: 3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V
- Output Current Max: 600 mA to 300 mA depending on output
- Efficiency: Up to 87%
- Isolation Voltage: 1500V DC for 60 seconds
- Isolation Capacitance: 100 pF
- Isolation Resistance: >1 Gigaohm
- Ripple and Noise: 70 mVp-p at 20 MHz bandwidth
- Operating Temperature Range: -40°C to +70°C
- Switching Frequency: Minimum 100 kHz
- Humidity: Up to 95% RH non-condensing
- Protective Features: Short circuit and overload protection
- Soldering Temperature: Up to 260°C for 10 sec
- Physical Size: 14mm x 14mm x 8mm
- Case Material: UL 94V-0 rated non-conducting plastic
- Certification: UL 60950-1, IEC/EN 60950-1
Buy the TracoPower TDL3 Series Reliable DC-DC Converter for Industrial Applications
Secure your electronic projects with the TracoPower TDL 3 series DC/DC converters. These compact, highly efficient modules feature 1500VDC I/O isolation, wide input range, multiple output options, and reliable short circuit and overload protections. Perfect for industrial automation, instrumentation, and control systems, they operate efficiently over a broad temperature range from -40°C to +70°C. With UL and IEC safety standards certification and a 3-year warranty, order online today and enhance your equipment's power reliability with ease and confidence.
Order your TracoPower TDL 3 Series 3 Watt DC/DC converter today and ensure your industrial projects have dependable, high-efficiency power modules.
