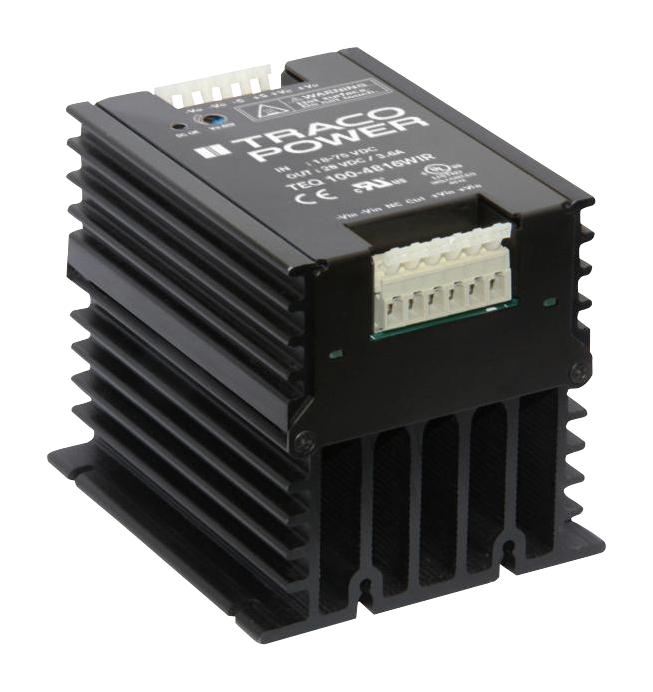

TRACO POWER TEQ1002416WIR DC/DC converter
The TEQ 100WIR series from TracoPower offers high-performance, isolated DC/DC converters in a rugged metal enclosure, ideal for industrial and railway applications. These modules support an ultra-wide 4:1 input voltage range (12V, 24V, 48V, 110V) with reverse voltage protection. They provide adjustable output voltages (12V, 24V, 28V, 48V), with maximum currents of 8.4A, 4.2A, 3.6A, and 2.1A and efficiencies up to 90%. Certified for IEC/EN 60950-1, UL, CSA, and EN 50155 railway standards, they feature undervoltage lockout, soft start, output trimming, remote on/off, high thermal performance, and low ripple/noise for reliable industrial power conversion.
TRACO POWER TEQ1002416WIR DC/DC converter Specifications:
- Casing material: aluminium
- Potting material: silicone (UL94V-0 rated)
- Weight: 800 g
- Input voltage: 12V, 24V, 48V, 110V (nominal), with +/− tolerance
- Output voltages: 12VDC, 24VDC, 28VDC, 48VDC, with adjustable voltage trim +10% to -20%
- Maximum output currents: 8.4A (12V), 4.2A (24V), 3.6A (28V), 2.1A (48V)
- Efficiency: up to 90%
- Isolation voltage: 2250 VDC (input/output, 60 sec), 1600 VDC (input/case)
- Operating temperature: -40°C to +105°C, derating above +85°C
- Ripple and noise: 125mVp-p (12V), 250mVp-p (24/28V), 350mVp-p (48V)
- Switching frequency: 250 kHz (24/48V models), 300 kHz (110V models)
- Certifications: IEC/EN 60950-1, UL 508, CSA C22.2, EN 50155 railway standard
- Surge voltage: 50V (12V), 100V (24V), 185V (110V)
- Protection features: undervoltage lockout, overvoltage cutoff, short circuit with hiccup recovery
- Humidity: 5% to 95% RH, non-condensing
- Compliance: RoHS, Reach, EN 45545 flammability
Buy the TracoPower TEQ1002416WIR – Reliable DC-DC Converter for Industrial Applications
Purchase the TracoPower TEQ1002416WIR converter online today and ensure reliable power conversion for your industrial or railway projects. This rugged, sealed module features an ultra-wide input voltage range, high efficiency up to 90%, and adjustable output voltages for versatile applications. Designed to operate reliably in challenging environments, it offers high thermal performance, low ripple, and comprehensive safety certifications including EN 50155 railway approval. Order now to benefit from fast delivery and expert support for your power supply needs.
Get TracoPower TEQ1002416WIR today—built for precision and long-lasting durability in industrial and railway power systems.
Frequently Asked Questions
Where can I buy TRACO POWER TEQ1002416WIR?
You can click on the BUY or RFQ button to purchase TEQ1002416WIR from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TEQ1002416WIR?
You can download the TEQ1002416WIR datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TEQ1002416WIR?
TRACO POWER
