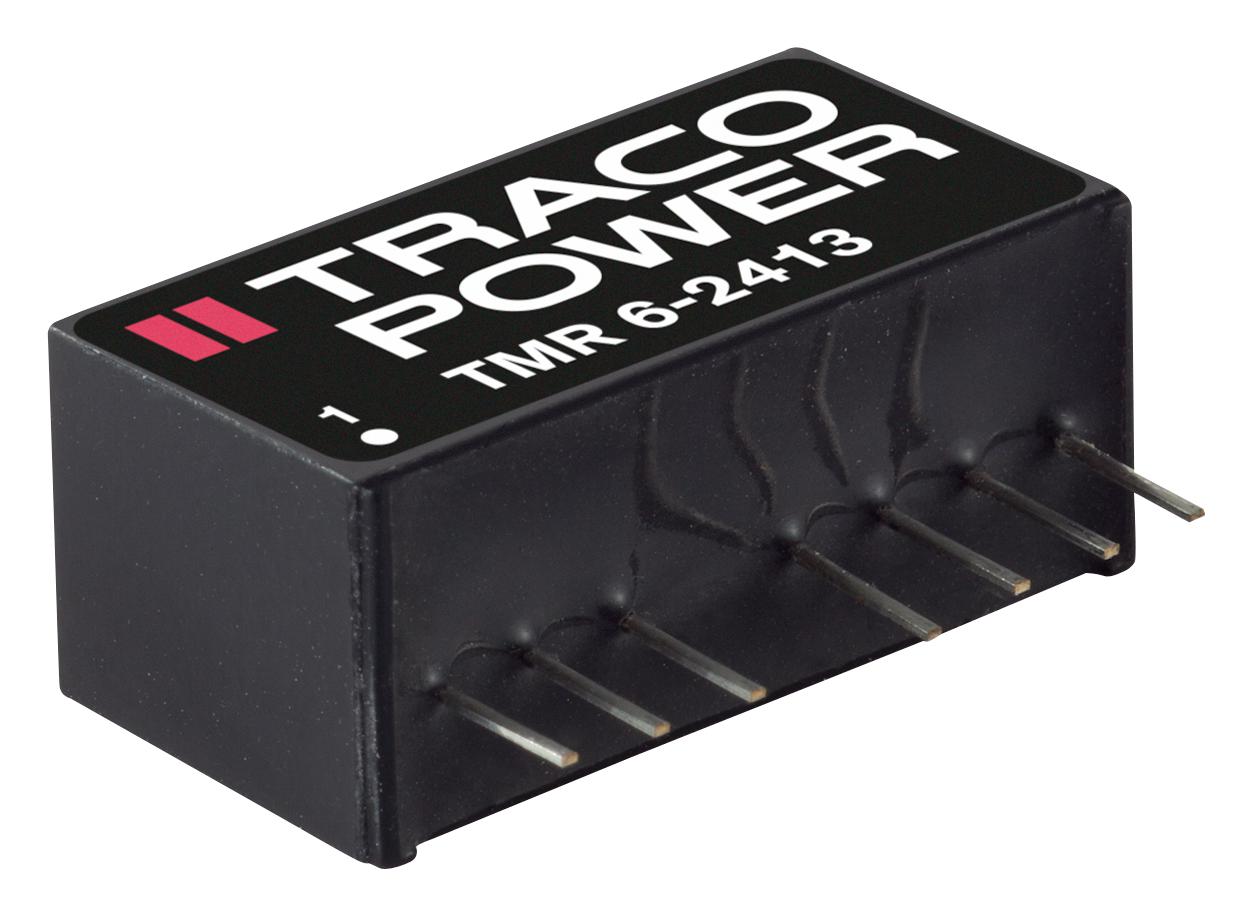

TRACO POWER TMR60511 DC/DC Converter
The TMR-6 series is a compact, 6W isolated DC/DC converter module designed for space-critical applications. It offers a wide 2:1 input voltage range, high efficiency up to 86%, and robust features like remote On/Off control and short circuit protection. Typically operating from -40°C to +65°C, its ultra-compact SIP-8 package makes it suitable for communication, instrumentation, and industrial electronics. The module provides 1600 VDC isolation, ensuring safety and separation in complex systems, with a 3-year warranty for reliable performance.
TRACO POWER TMR60511 DC/DC Converter Specifications:
- Input Voltage Range: 4.5-9 VDC, 9-18 VDC, 18-36 VDC, 36-75 VDC
- Output Power: 6W
- Efficiency: Up to 86%
- Isolation Voltage: 1600 VDC
- Operating Temperature Range: -40°C to +65°C
- Case Material: Non-conductive plastic with silicone potting
- Dimensions: Approximate size 2.0 cm x 2 cm x 0.8 cm
- Ripple and Noise (20 MHz bandwidth): 50 mVp-p max.
- Short Circuit Protection: Yes, automatic recovery
- Remote On/Off Control: Yes, open or high impedance for ON, 2–4 mA for OFF
- MTBF: >2.1 million hours
- Certifications: UL 60950-1, RoHS compliant
Buy the Buy Traco Power TMR Series Part Number TMR60511 Online
Purchase the Traco Power TMR60511 DC/DC converter online today for reliable performance in space-sensitive applications. This 6-watt module features wide input voltage ranges from 4.5V to 75V, achieving up to 86% efficiency. Its compact SIP-8 package allows easy integration into communication, instrumentation, and industrial electronics. With 1600 VDC isolation, remote On/Off control, short circuit protection, and a temperature range from -40°C to +65°C, this converter guarantees safe, stable, and efficient operation for demanding environments. Order now for high-quality, dependable power conversion
Get Traco Power TMR60511 today—built for precision and long-lasting durability in industrial and communication systems.
Frequently Asked Questions
Where can I buy TRACO POWER TMR60511?
You can click on the BUY or RFQ button to purchase TMR60511 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TMR60511?
You can download the TMR60511 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TMR60511?
TRACO POWER
