TRACO POWER TMH2405S DC/DC Converter
The TRAC Series TMH series offers ultra miniature, 2 Watt isolated DC/DC converters in a SIP package, ideal for space-critical applications requiring high efficiency and reliability. These fully SMD-designed modules provide single or dual outputs with up to 83% efficiency, 11000 VDC isolation, and RoHS compliance. They support a wide input voltage range, feature high reliability with over 2 million MTBF hours, and are suitable for many industrial and electronic device applications demanding compact, cost-effective power solutions.
TRACO POWER TMH2405S DC/DC Converter Specifications:
- Input Voltage: 5 V, 12 V, 24 V models, surge voltage up to 30 V
- Output Voltage: 5 V, 12 V, 15 V (single and dual outputs)
- Output Current: up to 400 mA
- Efficiency: up to 83%
- Isolation Voltage: 11000 VDC
- Ripple and Noise: 75-150 mV pk-pk depending on input
- Operating Temperature: -40°C to +85°C
- Short Circuit Protection: Limited 1 sec.
- MTBF: over 2 million hours
- Physical: Non-conductive UL 94VO rated plastic casing, 27g weight
- Dimensions: Length 19.5 mm, Width 10.25 mm, Height 11 mm
- Soldering Temp: Max +265°C for 10 seconds
- Environmental: Reach and RoHS compliant
- Input Filter: Internal capacitors, external capacitor recommended for ripple reduction

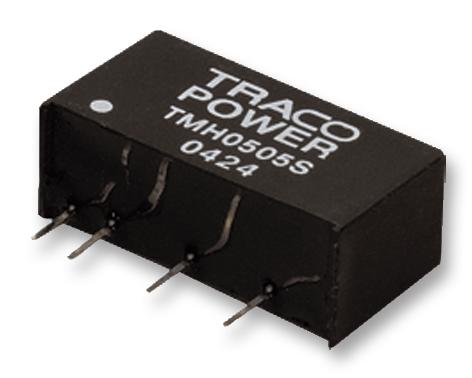

Buy the Trac Series TMH 2W Isolated DC/DC Converter: TMH2405S
Discover the high-performance Trac Series TMH 2405S isolated DC/DC converter, offering 2 Watts of power in a compact SIP package. Designed for space-critical applications, it features up to 83% efficiency, 11000 VDC isolation, and RoHS compliance. Its reliable performance includes over 2 million MTBF hours and support for a broad input voltage range from 5V to 24V. Perfect for industrial, medical, and electronic devices requiring durable, efficient, and compact power conversion solutions—order online now for quick delivery.
Order your Trac Series TMH 2405S high-efficiency, 2 Watt isolated power converter today and ensure reliable power delivery in your industrial or electronic projects.
Frequently Asked Questions
Where can I buy TRACO POWER TMH2405S?
You can click on the BUY or RFQ button to purchase TMH2405S from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TMH2405S?
You can download the TMH2405S datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TMH2405S?
TRACO POWER
