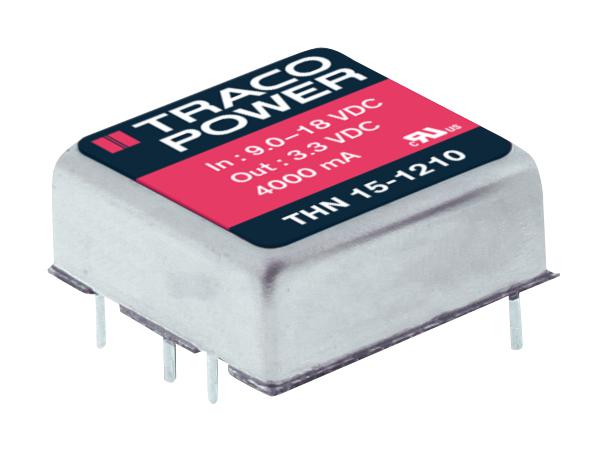

TRACO POWER THN152423 DC/DC Converter
The THN 15 Series by Traco Power offers high-performance, compact DC/DC converters delivering 15W power. Encased in a shielded, metal enclosure measuring just 1.0 x 1.0 x 0.4 inches, these converters feature a wide 2:1 input voltage range, high efficiency up to 90%, and operate from -40°C to +85°C. They include remote On/Off control, output voltage trimming, and industry-standard pinouts. Ideal for space-constrained mobile, industrial, and communication equipment, they ensure reliable power regulation with overvoltage, short circuit protection, and a 3-year warranty.
TRACO POWER THN152423 DC/DC Converter Specifications:
- Input Voltage Range: 3.3 VDC to 48 VDC with 2:1 input ratio
- Output Power: 15 Watt
- Output Voltage Options: 3.3 V, 5 V, 12 V, 15 V, 24 V, 48 V
- Efficiency: Up to 90%
- Operating Temperature Range: -40°C to +85°C (with derating)
- Isolation Voltage: 1500 VDC
- Dimensions: 1.0 x 1.0 x 0.4 inches (25.4 x 25.4 x 10.16 mm)
- Short Circuit Protection: Yes, continuous, automatic recovery
- Over Voltage Protection: Yes, varies by output voltage
- Remote On/Off Control: Yes, 3.0 to 15 VDC or open circuit
- MTBF: Greater than 1.6 million hours
- Soldering Temperature: 265°C / 10 seconds max
- Physical Material: Nickel-coated copper casing, epoxy potting
- Weight: 15 grams
- Certifications: UL / cUL 60950-1, EN 60950-1, IEC 60950-1
- Isolation Capacitance: 1000 pF
- Isolation Resistance: >1000 MΩ at 500 VDC
Buy the Buy Traco Power DC/DC Converter Part Number THN152423 Online
Order the Traco Power THN 15-2423 DC/DC converter online now to ensure your systems have a reliable, space-saving power solution. This 15W ultra-compact module features high efficiency, wide input voltage range, and advanced protections, making it ideal for industrial electronics, communication devices, and mobile equipment requiring dependable power regulation. With a rugged construction, industry-standard pinout, and a 3-year warranty, you can confidently enhance your design’s performance. Immediate online purchase guarantees fast delivery and consistent quality for critical applications.
Get Traco Power THN 15-2423 today—compact, high-efficiency, and reliable power supply for industrial and communication systems.
Frequently Asked Questions
Where can I buy TRACO POWER THN152423?
You can click on the BUY or RFQ button to purchase THN152423 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part THN152423?
You can download the THN152423 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of THN152423?
TRACO POWER
