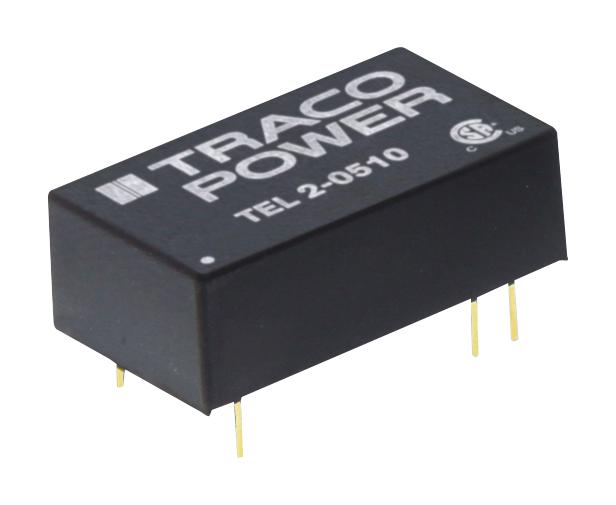

TRACO POWER TEL21222 DC/DC Converter
The TRACO POWER TEL Series 2 Watt DC/DC converters feature a compact DIP-16 plastic package, offering regulated output, wide input range, and high efficiency. Ideal for industrial and consumer electronics, they provide 1500V I/O isolation, low ripple, and noise, with overcurrent and short circuit protection. Operating from -40°C to +75°C, these RoHS-compliant, lead-free converters have a minimal footprint of 3.25 cm². Designed for reliable power conversion, they meet safety standards with a robust design, making them suitable for cost-critical applications requiring stable and isolated DC voltage supply.
TRACO POWER TEL21222 DC/DC Converter Specifications:
- Power: 2 Watt
- Input Voltage Range: 3.3 VDC to 45 VDC, up to 48 VDC for some models
- Output Voltage: 3.3 VDC, 5 VDC, 12 VDC, 15 VDC, 45 VDC, among others
- Output Current Max: 500 mA, 400 mA, 165 mA, 135 mA, up to 200 mA
- Efficiency: 64% to 81% depending on model
- Isolation Voltage: 1500 VDC
- Operating Temperature: -40°C to +75°C
- Ripple and Noise: 50 mVpk-pk max at 20 MHz bandwidth
- Regulation: Input variation up to 0.5%, load variation 0.75-2.0%
- Short Circuit Protection: Indefinite with auto recovery
- Dimensions: 16 x 15.24 mm, height varies
- Weight: 5.1 g
- Safety Standards: UL, IEC, CSA compliant
- Soldering Temperature: Max 265°C for 10 sec
Buy the Traco Power Series TEL2 2 Watt DC/DC Converter: TEL21222
Purchase the Traco Power Series TEL2 2 Watt DC/DC Converter online today and enjoy dependable, isolated power conversion for your electronic and industrial applications. With a compact DIP-16 package, wide input voltage range, and high efficiency, this converter ensures stable output even in demanding environments. Its robust design includes high I/O isolation of 1500V, low ripple and noise, and full safety compliance, making it ideal for cost-critical projects. Elevate your power management setup—order now to keep your systems running smoothly and reliably.
Order your Traco Power Series TEL2 2 Watt DC/DC Converter today and ensure reliable, compact power regulation for your industrial or electronic projects.
Frequently Asked Questions
Where can I buy TRACO POWER TEL21222?
You can click on the BUY or RFQ button to purchase TEL21222 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TEL21222?
You can download the TEL21222 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TEL21222?
TRACO POWER
