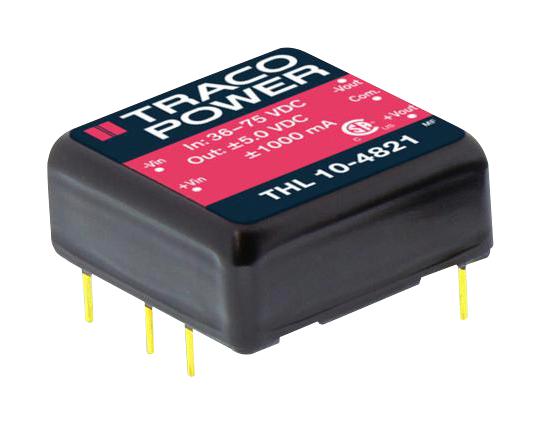

TRACO POWER THL104821 DC/DC Converter
The THL 10 series from TracoPower consists of 10W single and dual output DC/DC converters. These versatile power modules come in a compact 1” x 1” metal casing with a shielded design and an isolated baseplate. They feature an industrial-standard pinout, a wide 2:1 input voltage range, and an input filter compliant with EN 55022 class A without external components, simplifying integration. The converters support input voltages of 12VDC, 24VDC, and 48VDC, with output options including 3.3V, 5.1V, 12V, 15V, ±5V, ±12V, and ±15V. They are capable of delivering up to 2,500mA (single output) or 1,000mA (dual output) with peak efficiencies of up to 89%. The modules offer robust short circuit and overvoltage protection and operate across a temperature range from -40°C to +80°C, extending to +85°C with a heatsink. Key features include 1,500VDC I/O isolation voltage, low ripple and noise, fixed switching frequency of 300kHz, and compliance with UL/cUL 60950-1 and IEC/EN 60950-1 safety standards. These power supplies are suitable for instrumentation, distributed power architectures in communication, and industrial electronics applications.
TRACO POWER THL104821 DC/DC Converter Specifications:
- Power: 10 Watt
- Input voltage range: 12VDC, 24VDC, 48VDC, with 2:1 ratio
- Output voltage options: 3.3V, 5.1V, 12V, 15V, ±5V, ±12V, ±15V
- Output current: up to 2500 mA for single, 1000 mA for dual output
- Efficiency: up to 89%
- Isolation voltage: 1500 VDC Input/Output
- Operating temperature: -40°C to +80°C, extendable to +85°C with heatsink
- Switching frequency: 300 kHz
- Input noise filter: Meets EN 55022 Class A
- Protection: Short circuit, overvoltage, automatic recovery
- Dimensions: 1” x 1” metal case, weight approx. 15 g
- Certifications: UL/cUL 60950-1, IEC/EN 60950-1
Buy the TracoPower THL 10 Series – Reliable DC/DC Converter for Industrial Applications
Purchase the TracoPower THL 10 series DC/DC converter online today and benefit from its compact design, high efficiency up to 89%, and excellent isolation for industrial electronics, instrumentation, and communication systems. With wide input voltage ranges, robust protection features, and compliance with safety standards, these power modules guarantee reliable and safe operation in demanding environments. Whether upgrading existing systems or developing new solutions, our online ordering process is quick and straightforward, ensuring you get high-quality power supplies delivered promptly for your project needs.
Order your TracoPower Series THL 10 converter today and ensure your industrial electronics and communication projects operate with dependable power.
Frequently Asked Questions
Where can I buy TRACO POWER THL104821?
You can click on the BUY or RFQ button to purchase THL104821 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part THL104821?
You can download the THL104821 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of THL104821?
TRACO POWER
