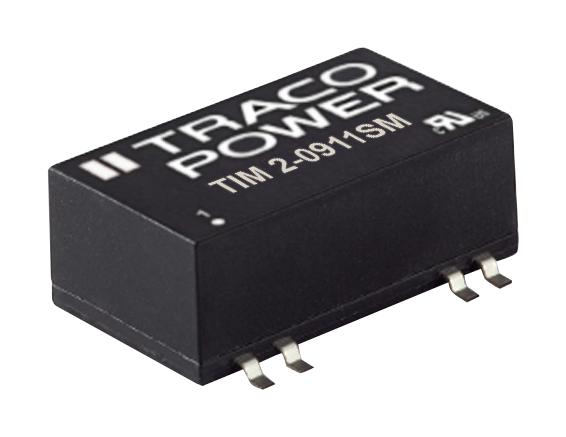

TRACO POWER TIM21222SM medical power supply
The TIM 2SM series is a compact 2 Watt DC/DC converter specifically designed for medical applications, featuring reinforced isolation of 5000 VACrms and low leakage current below 2 pA. It complies with IEC/EN/ES 60601-1 standards, operates reliably up to 95°C, and is suitable for high-altitude environments up to 5000 m. Its EMC compliance ensures minimal electromagnetic interference, making it ideal for insulating electrical equipment from patient contact, with a 5-year warranty and ISO 14971 risk management documentation.
TRACO POWER TIM21222SM medical power supply Specifications:
- Input voltage range: 3.3 VDC to 48 VDC
- Output voltage options: 3.3 V, 5 V, 9 V, 12 V, 15 V, 24 V, 36 V, 48 V
- Output current: 83 mA to 500 mA depending on model
- Efficiency: 74% to 82%
- Isolation Voltage: 5000 VAC reinforced insulation
- Working temperature: -40°C to +95°C, derating above 90°C at 6.7%/K
- Leakage current: < 2 pA at 240 VAC
- Operating altitude: up to 5000 m
- Dimensions: approx. 24.3 mm x 15.24 mm x 18.1 mm (0.95 in x 0.6 in x 0.71 in)
- Case material: Non-conductive black plastic
- Potting material: Silicone
- Certifications: IEC/EN/ES 60601-1, RoHS, IEC 60601-1-2 EMC, UL
- Shock and vibration resistance: MIL-STD-810F compliant
- Protection features: Overvoltage, short circuit, under voltage shut down
- Switching frequency: >100 kHz
- MTBF: approximately 6,809,000 hours
Buy the Traco Power TIM21222SM – Reliable Medical DC/DC Converter for Industrial Applications
Order the Traco Power TIM21222SM online today to ensure your medical equipment operates safely with reliable power conversion, high isolation, and low leakage current. This ultra-compact 2 Watt DC/DC converter is ideal for applications requiring reinforced isolation of 5000 VACrms, adherence to medical safety standards, and high-temperature operation up to 95°C. With certified compliance to IEC 60601-1 and robust EMC performance, it guarantees optimal insulation and safety. Invest in this durable, low-maintenance power supply to enhance your medical device performance and meet stringent industry requirements.
Buy Traco Power TIM21222SM now and experience unmatched reliability and performance for medical and industrial applications.
Frequently Asked Questions
Where can I buy TRACO POWER TIM21222SM?
You can click on the BUY or RFQ button to purchase TIM21222SM from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TIM21222SM?
You can download the TIM21222SM datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TIM21222SM?
TRACO POWER
