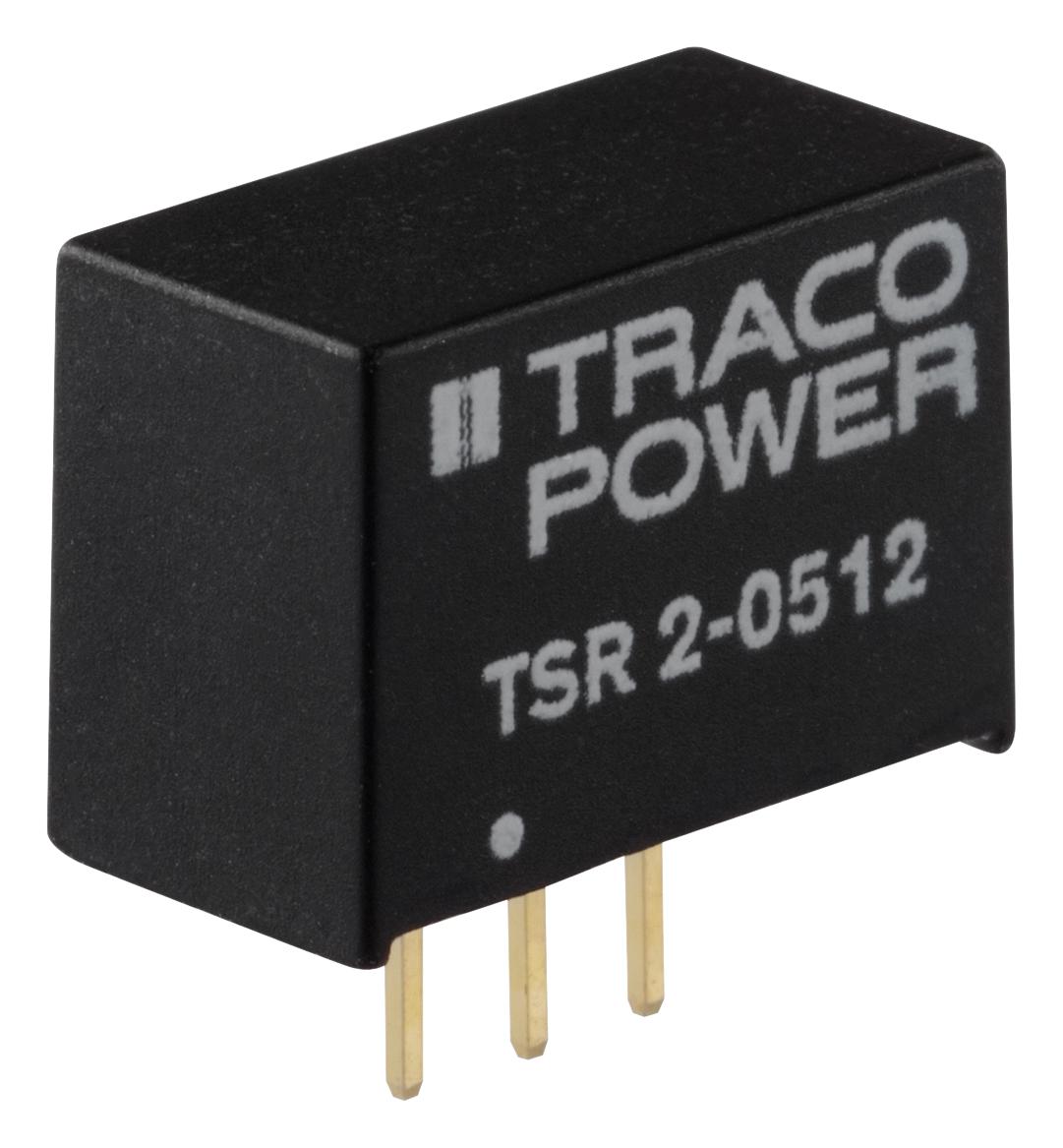

TRACO POWER TSR224120 DC/DC Converter Module
The TSR 2 series is a compact, high-efficiency DC/DC switching regulator designed to replace linear regulators like LMxx. Offering up to 96% efficiency, it operates within -40°C to +85°C and delivers up to 2A load current. Its SIP package measures 0.55 x 0.30 x 0.40 inches and features built-in filter capacitors, short circuit and overload protection, and excellent line/load regulation. This lightweight, reliable module is ideal for battery-powered applications requiring stable voltage conversion without external capacitors or heat sinks.
TRACO POWER TSR224120 DC/DC Converter Module Specifications:
- Input Voltage Range: 3.0 - 36 VDC
- Output Voltage Range: 1.2 VDC to 15 VDC
- Efficiency: Up to 96%
- Maximum Output Current: 2A
- Operating Temperature: -40°C to +85°C
- Input Current No Load: 1 mA typ.
- Ripple and Noise: 50 mVp-p typical
- Start-up Time: 5 ms typ.
- Dimensions: 0.55 x 0.30 x 0.40 inches
- Package Material: Plastic, non-conducting
- Soldering Temperature Max.: 260°C / 10 sec.
- Switching Frequency: 1.2 MHz typical
- Protection: Short circuit, overload, automatic recovery
- MTBF: 13,520,000 hours
- Certifications: RoHS compliant, IEC 61000-4-2/3/4/6 compatible
Buy the Buy Traco Power TSR 2 Series Part Number TSR224120 Online
Order the Traco Power TSR 2 Series TSR224120 online today to benefit from high efficiency, a compact SIP package, built-in filters, and robust protections. This 2A capable DC/DC converter ensures stable voltage regulation, low ripple, and excellent line/load regulation, making it ideal for space-constrained, battery-powered applications. With no external capacitors necessary, it simplifies your design while providing reliable performance from -40°C to +85°C. Get this versatile module now to optimize your power management system with ease and confidence.
Buy Traco Power TSR 2 Series TSR224120 now and experience unmatched efficiency, compact design, and reliable voltage regulation for your power needs.
