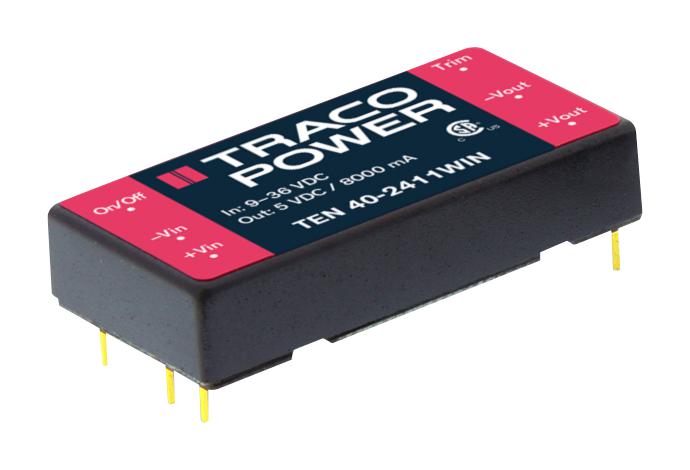

TRACO POWER TEN404812WIN DC-DC Converter
The TEN 40WIN Series is a compact 40-watt isolated DC/DC converter with high efficiency up to 90%, an ultra-wide 4:1 input range, and adjustable output voltage. Its small footprint of 1" x 2" x 0.4" makes it ideal for space-constrained applications like mobile equipment, instrumentation, and industrial electronics. Features include remote on/off, short circuit and overvoltage protection, and a working temperature from -40°C to +75°C. Certified with a 3-year warranty, it delivers reliable power for demanding environments.
TRACO POWER TEN404812WIN DC-DC Converter Specifications:
- Input voltage range: 3.3V to 48VDC with models for specific voltages
- Output power: 40 Watts
- Efficiency: up to 90%
- Output voltage: adjustable with external resistor
- Isolation voltage: 1500 VDC
- Operating temperature: -40°C to +75°C
- Dimensions: 1" x 2" x 0.4" (25.4mm x 50.8mm x 10.16mm)
- Protection: short circuit and overvoltage
- Remote On/Off: 4.7 to 12 VDC or open circuit
- Soldering temperature: max. 260°C / 10 sec.
- Weight: approximately 30g
- Safety standards: UL, CSA, IEC 60950-1
- Physical casing: aluminum, black anodized
Buy the Traco Power Series TEN 40WIN DC-DC Converter: TEN404812WIN
Order the Traco Power TEN404812WIN online today and enjoy a high-performance 40-watt isolated DC/DC converter with up to 90% efficiency. Its compact footprint, adjustable output voltage, and robust protections make it perfect for industrial, communication, and mobile applications where space is limited. With a wide input range of up to 48VDC and certifications for safety standards, this converter delivers reliable power and long-term durability. Purchase now for quick delivery and seamless integration into your systems.
Buy Traco Power TEN404812WIN now and experience unmatched reliability and performance with high efficiency and space-saving design.
Frequently Asked Questions
Where can I buy TRACO POWER TEN404812WIN?
You can click on the BUY or RFQ button to purchase TEN404812WIN from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TEN404812WIN?
You can download the TEN404812WIN datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TEN404812WIN?
TRACO POWER
