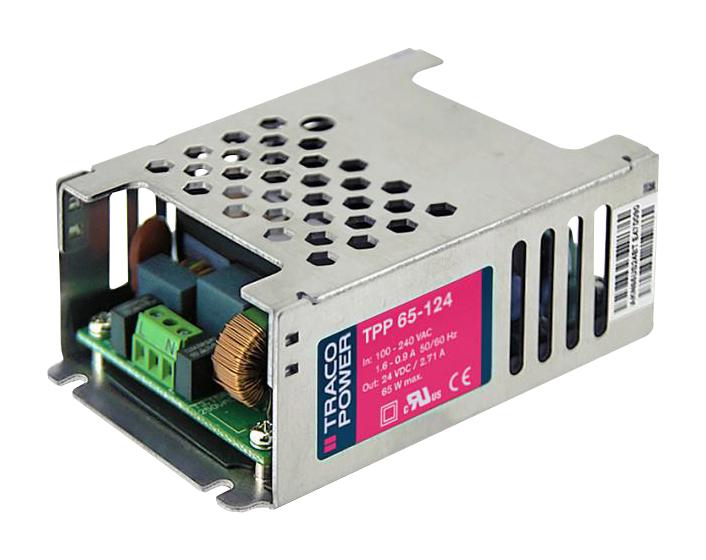

TRACO POWER TPP65221 medical power supply
The TPP 65 Series is a compact 65 Watt medical-grade power supply designed for demanding safety-critical applications. It offers high efficiency up to 92%, low leakage current below 75 pA, and reinforced safety insulation complying with IEC 60601-1 3rd edition standards for 2 x MOPP. Its operating temperature range extends from -40°C to +85°C with de-rating, making it suitable for integration into medical devices and industrial applications. Features include reinforced insulation, low-noise operation, and a robust enclosure for reliable performance in space-constrained environments.
TRACO POWER TPP65221 medical power supply Specifications:
- Output Power: 65 W
- Input Voltage: 85 - 264 VAC, 120 - 370 VDC (no certification)
- Output Voltages: Various models including 5V, 12V, 15V, 24V, +12V/+5V, +15V/+5V, +24V/+5V, with max currents from 600mA to 10A
- Efficiency: Up to 94%
- Operation Temperature: -40°C to +85°C with load de-rating, full load up to 60°C
- Protection Class: Class I, reinforced insulation
- Leakage Current: <75 pA
- Isolation Test Voltage: 5657 VDC input to output
- Dimensions: Approximately 2.44 in x 3.0 in x 1.18 in
- Cooling: Natural convection, no internal fan
- Vibration: IEC 60068-2-6, IEC 60068-2-27
- Altitude: Up to 5000 m
- EMC Standards: IEC 60601-1-2 Ed. 4, FCC Part 18, EN 55011, EN 55032
- Safety Compliance: IEC 60601-1, ANSI/AAMI ES 60601-1, UL 60601-1
- Certification: 2 x MOPP for patient protection, reinforced insulation
- Inrush Current: Max 60A at 230 VAC
- Hold-up Time: Min. 16 ms at 115 VAC
- MTBF: Approximately 1,500,000 hours
Buy the Traco Series TPP Medical Power Supply: TPP65221
Order the Traco TPP65221 today and ensure your medical or industrial device benefits from a high-efficiency, low-noise, and space-saving power solution. This 65W model features reinforced insulation, low leakage current below 75 pA, and comprehensive safety compliance including IEC 60601-1 standards. Its wide temperature range from -40°C to +85°C, natural convection cooling, and robust design make it ideal for demanding environments. Purchase online now for quick delivery and reliable operation in safety-critical applications.
Buy Traco Power TPP65221 now and experience unmatched reliability, efficiency, and safety for your medical and industrial projects.
