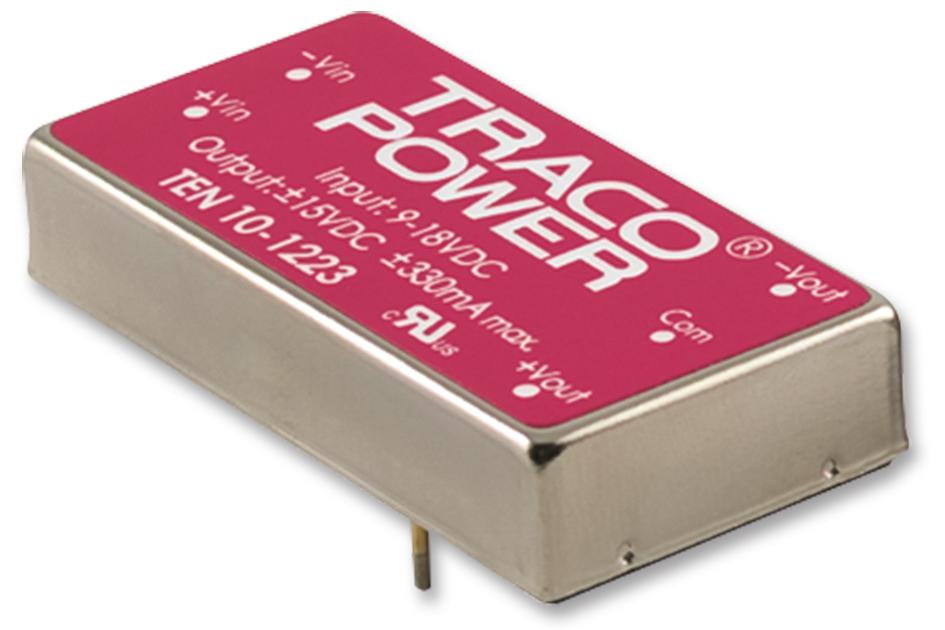

TRACO POWER TEN101215 DC/DC Converter
The TEN 10 series offers high-performance 10W DC/DC converters in a compact 2 x 1-inch low profile metal case, suitable for industrial and communication equipment. These converters feature a wide 2:1 input range, high efficiency up to 83%, and operate reliably from -40°C to +85°C. They include built-in EMI filters meeting EN 55022, class A standards, overvoltage and short-circuit protection, and are UL 60950-1 certified. Ideal for battery-powered devices, instrumentation, and distributed power architectures with isolated, regulated outputs.
TRACO POWER TEN101215 DC/DC Converter Specifications:
- Input voltage range: 3.3V, 5V, 12V, 15V, 24V, 36V, 48V with various models
- Output power: 10 Watts
- Efficiency: up to 83%
- Operating temperature: -40°C to +85°C
- Isolation voltage: 1500 VDC input/output, 1/500 VDC input/output insulation tests
- Ripple and noise: 50-75 mVpk-pk depending on model
- MTBF: Greater than 1 million hours
- Cooling: Convection cooling with derating above 70°C
- Protection: Short circuit, overvoltage, automatic recovery
- Soldering temperature: Max 265°C for 10 sec
- Case material: Steel with insulated baseplate
- Dimensions: 2” x 1” x 0.43” (approximate)
- Compliance: UL 60950-1, RoHS, Reach
- Switching frequency: 300-500 kHz
Buy the Buy TracoPower TEN 10 Series Power Part Number TEN101215 Online
Purchase the TracoPower TEN 10 Series DC/DC Converter TEN101215 online today and enjoy high efficiency, robust protection features, wide temperature operation, and compact design. Ideal for industrial, communication, and instrumentation applications, this converter provides isolated, regulated outputs with excellent reliability. With UL certification and built-in EMI filters meeting EN 55022, class A standards, it ensures seamless integration into your projects. Secure your power solutions now for dependable performance in demanding environments.
Order your TracoPower Series TEN 10 Power Converter part TEN101215 today and ensure reliable, efficient power supply for your industrial projects.
Frequently Asked Questions
Where can I buy TRACO POWER TEN101215?
You can click on the BUY or RFQ button to purchase TEN101215 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TEN101215?
You can download the TEN101215 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TEN101215?
TRACO POWER
