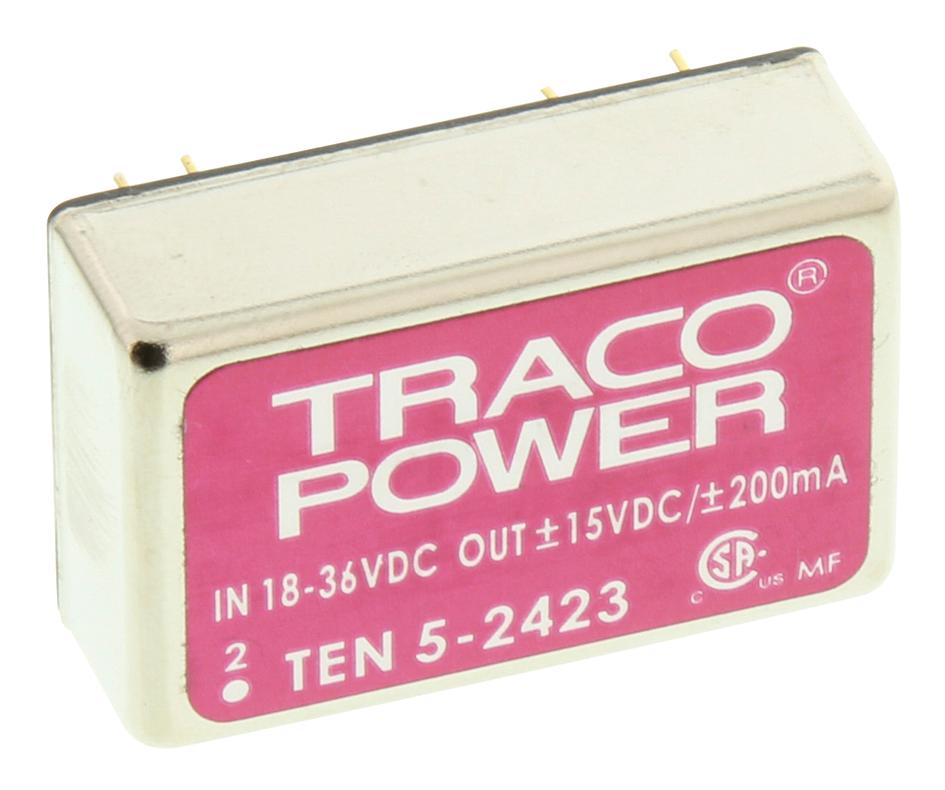

TRACO POWER TEN52423 Industrial Power Converter
The POWER TEN 5 Series is a reliable range of 6 Watt DC/DC converters designed for industrial and communication applications. These modules feature a wide input range from 4.4 VDC to 75 VDC, high efficiency up to 86%, and an isolation voltage of 1500 VDC. They have full SMD design, robust metal shielding, and operate reliably within the temperature range of -40°C to 85°C. With features like short circuit protection, low ripple, and compliance with EN 55022 and FCC Class A standards, these converters are ideal for demanding environments requiring stable power supply solutions.
TRACO POWER TEN52423 Industrial Power Converter Specifications:
- Input Voltage Range: 4.4 VDC to 75 VDC, various models from 3.3 VDC to 75 VDC output
- Output Current: up to 1200 mA depending on model
- Efficiency: Up to 86%
- Isolation Voltage: 1500 VDC
- Operating Temperature: -40°C to 85°C
- Ripple and Noise: 50-75 mVpk-pk (20 MHz bandwidth)
- Short-Circuit Protection: Indefinite (automatic recovery)
- MTBF: Over 1 million hours
- Protection: Reverse voltage, input undervoltage, and overload
- Dimensions: Compact steel case, with power weight approximately 16.9 g
- Compliance: UL 60950-1, IEC/EN 60950-1, RoHS, Reach
Buy the TracoPower Series Power TEN 5 DC/DC Converter: TEN52423
Order the TracoPower Power TEN 5 Series TEN52423 online today and experience reliable, high-efficiency power conversion for industrial, communication, and embedded systems. Designed with robust shielding and a wide input voltage range, this 6 Watt DC/DC converter offers superior noise immunity, exceptional temperature stability, and proven safety standards. Perfect for demanding environments where stable power and long-term dependability are essential. Take advantage of quick online purchasing, fast delivery, and enjoy the confidence of high-quality power modules tailored for your critical applications.
Get TracoPower Power TEN 5 Series TEN52423 today—built for precision, high efficiency, and long-lasting durability for industrial and communication power needs.
Frequently Asked Questions
Where can I buy TRACO POWER TEN52423?
You can click on the BUY or RFQ button to purchase TEN52423 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TEN52423?
You can download the TEN52423 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TEN52423?
TRACO POWER
