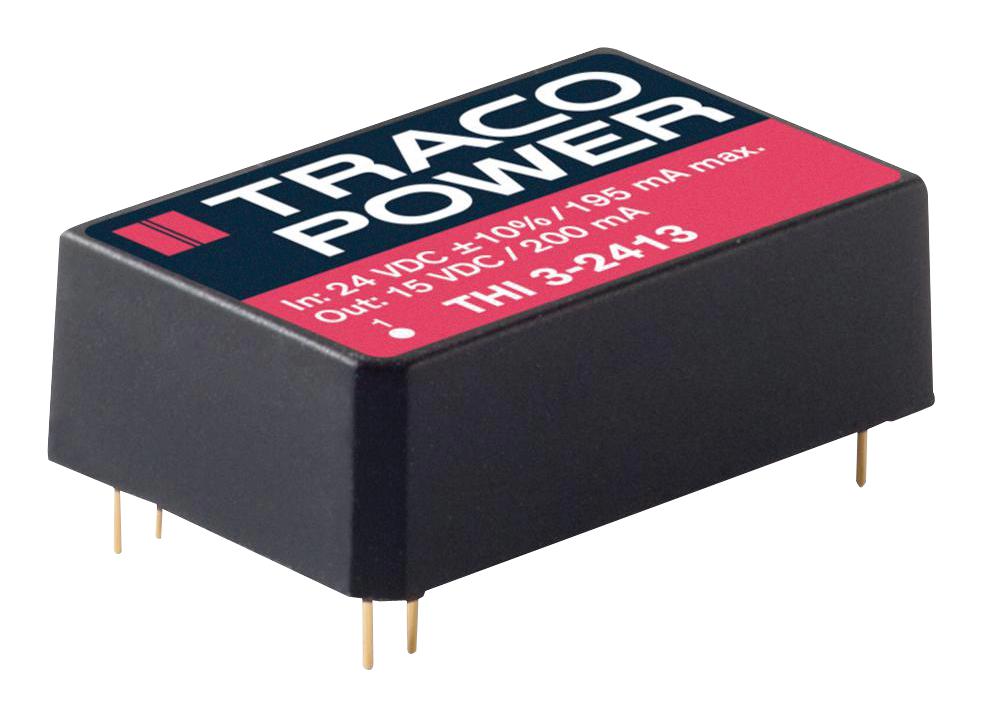

TRACO POWER THI30523 High Isolation DC/DC Converter
The THI 3 series consists of high isolation, medical and industrial compliant DC/DC converters encapsulated in DIP-24 packages. These 3 Watt power modules feature reinforced insulation, ensuring safety standards compliance with medical safety and industrial safety standards. They provide fully regulated output voltages for applications demanding high isolation, low leakage current, and excellent noise filtering. Designed for industrial controls and medical instrumentation, the converters operate efficiently over a wide temperature range, offering short circuit protection and low coupling capacitance for reliable performance in demanding environments.
TRACO POWER THI30523 High Isolation DC/DC Converter Specifications:
- Input Voltage Range: 5 VDC, 12 VDC, 24 VDC
- Output Voltage Options: 5 V, 12 V, 15 V, 24 V with respective currents up to 600 mA
- Efficiency: 60-64%
- Isolation Voltage: 4000 VACrms rated, 300 VACrms working
- Isolation Capacitance: <220 pF per output, Input/Output about 20 pF
- Leakage Current: 2 pA at 240 VAC, 60 Hz
- Regulation: 0.5% input variation, 1.0% load variation
- Ripple & Noise: Max 50 mVpk-pk at 20 MHz bandwidth
- Operating Temperature: -40°C to +75°C, case temperature up to +95°C
- Short Circuit Protection: Automatic recovery
- Switching Frequency: 25-60 kHz
- Dimensions: Encapsulated DIP-24, weight 12.4 g
- Compliance: IEC/EN 60950-1, IEC/EN 60601-1, RoHS, Reach
- Pin Material: Copper Alloy with gold plating, Nickel over subplate
- Soldering Temperature: Max 260°C for 10 sec
Buy the Buy Traco Power DC/DC Converter Part Number THI30523 Online
Purchase the Traco Power High Isolation DC/DC Converter Part Number THI30523 online today and ensure your industrial or medical systems meet the strict safety standards. With reinforced insulation, automatic short circuit recovery, and low leakage current, this 3-watt module guarantees reliable operation across a broad temperature range. Its encapsulated DIP-24 design offers durability and easy installation, making it the ideal solution for applications requiring high isolation and regulatory compliance. Upgrade your equipment now for superior safety, efficiency, and peace of mind.
Buy Traco Power THI30523 now and experience unmatched reliability and performance in medical and industrial safety applications.
Frequently Asked Questions
Where can I buy TRACO POWER THI30523?
You can click on the BUY or RFQ button to purchase THI30523 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part THI30523?
You can download the THI30523 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of THI30523?
TRACO POWER
