TRACO POWER TIM22415 Medical DC/DC Converter
This 2 Watt DC/DC converter in a compact DIP-16 package is specifically engineered for medical applications. It features reinforced isolation of 5000 VACrms, operating temperature from -40°C to 95°C, and low leakage current under 2 pA, ideal for BF-class patient-connected devices. Certified to IEC/EN/ES 60601-1 standards with safety tested up to 5000 meters altitude, it offers multiple output voltage options ranging from 3.3 VDC to 42 VDC, along with high efficiency, low noise, and comprehensive EMC immunity, ensuring dependable performance in healthcare and sensitive electronic equipment.
TRACO POWER TIM22415 Medical DC/DC Converter Specifications:
- Input Voltage Range: 2.4 - 36 VDC
- Output Voltage Options: 3.3 VDC, 5 VDC, 9 VDC, 12 VDC, 15 VDC, 24 VDC, 36 VDC, 42 VDC
- Output Current Max: 500 mA (at 3.3 VDC), 400 mA (at 5 VDC), 222 mA (at 9 VDC), 167 mA (at 12 VDC), 134 mA (at 15 VDC), 83 mA (at 24 VDC and 36 VDC)
- Efficiency: up to 81%
- Isolation Voltage: 5000 VAC (reinforced insulation)
- Operating Temperature Range: -40°C to +95°C
- Leakage Current: < 2 pA at 240 VAC
- Start-up Voltage: varies by output (e.g., 4 - 6.5 V for 3.3 V output)
- Dimensions: 14.4 x 10.16 x 7 mm (0.57 x 0.40 x 0.28 inches)
- Case Material: Non-conductive black plastic
- Protection Features: Overvoltage protection, short circuit protection, under voltage shutdown
- EMC Compliance: IEC 60601-1-2, EN 55011, EN 61000-4 series
- Certifications: IEC/EN/ES 60601-1, RoHS compliant
- Soldering Temperature: 260°C for 10 seconds

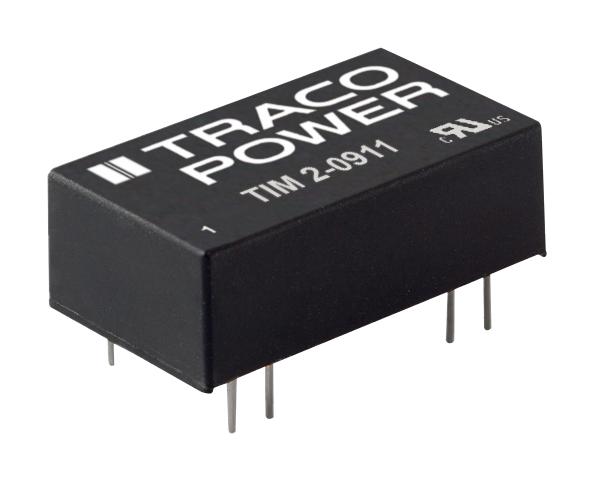

Buy the Buy TracoPower DC/DC Converter TIM 2 Series 22415 Online
Purchase the TracoPower TIM 2-1245 24VDC medical-grade DC/DC converter online today. This reliable, compact power supply offers reinforced 5000 VACrms isolation, low leakage current, wide temperature operation from -40°C to 95°C, and certification to IEC 60601-1 standards. Suitable for sensitive healthcare devices, it provides stable output, high efficiency, and comprehensive EMC immunity. Ensuring safety and dependability, this converter is your ideal choice for medical and professional electronic applications requiring high isolation and regulatory compliance.
Order your TracoPower SeriesTIM 2-1245 24VDC medical-grade converter today and ensure reliable power for healthcare equipment.
