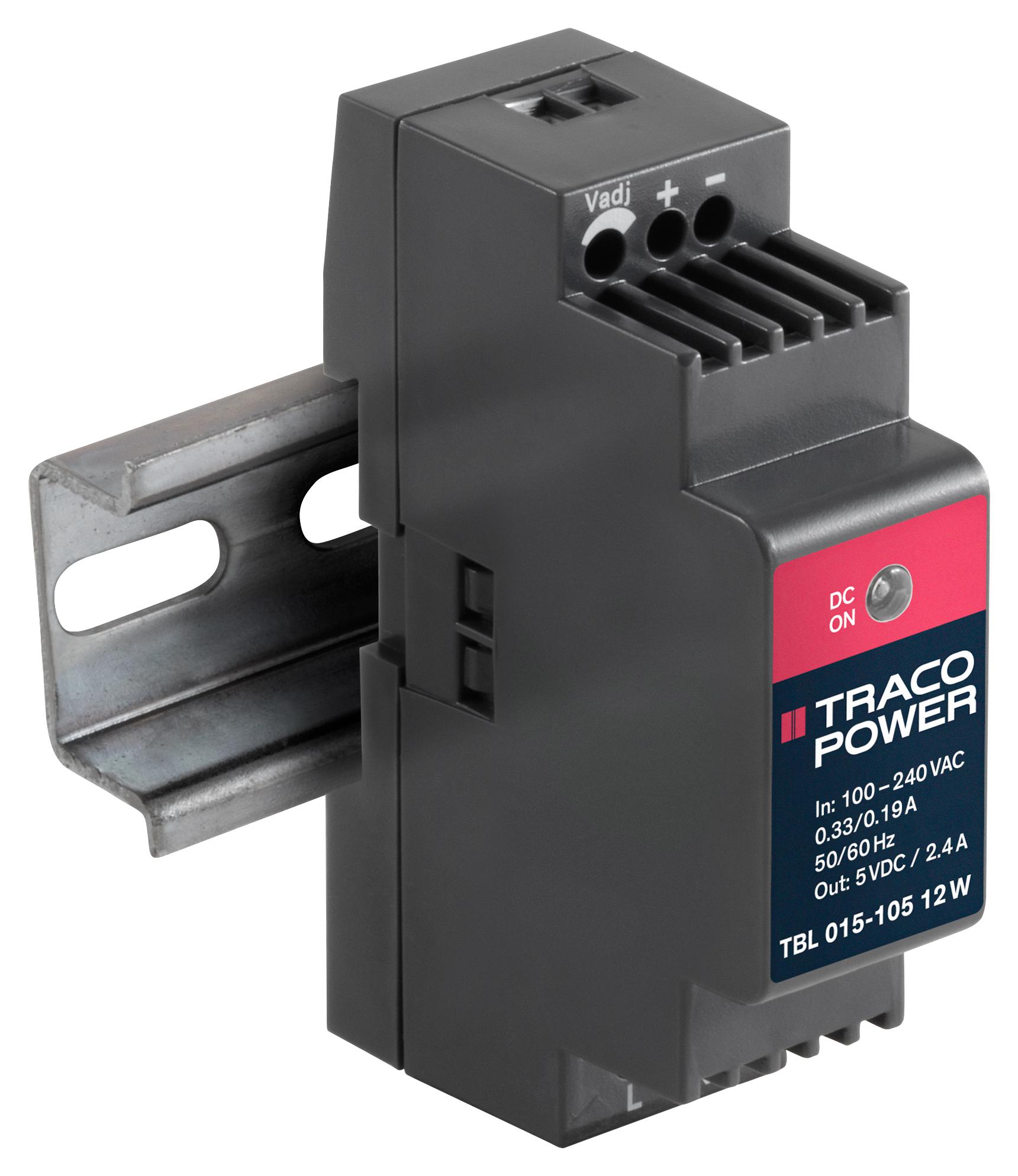

TRACO POWER TBL015105 Industrial Power Supply
The TBL series power supplies offer compact, low-profile cases designed for building automation and industrial control panels. They provide universal input voltage (85-264 VAC), adjustable output voltages, and high efficiency up to 87%. These UL 508 listed modules operate over a wide temperature range from -25°C to +70°C without additional cooling. With robust safety and EMC compliance, they feature short circuit and overload protection, DC-OK indicators, and easy DIN-rail mounting. Available in power ratings from 15W to 150W, these versatile power supplies support various industrial and commercial automation applications, ensuring safe and reliable power conversion worldwide.
TRACO POWER TBL015105 Industrial Power Supply Specifications:
- Input Voltage: 85 - 264 VAC; 47 - 63 Hz
- Output Power: 15W to 150W
- Output Voltage: 5.0 VDC to 28 VDC (adjustable)
- Output Current: up to 24.5A depending on model
- Efficiency: Up to 87%
- Operating Temperature Range: -25°C to +70°C
- Ripple and Noise: <100 mV pk-pk
- Protection: Short circuit, overload, overvoltage
- MTBF: >1,300 to >2,100 million hours depending on model
- Safety Standards: UL 508, UL 1310, IEC/EN 60950-1, ISO 9001
- EMC: EN 61000-6-3, EN 61000-6-2
- Enclosure: Plastic, IP20 protection class
- Mounting: DIN-rail or wall with supplied bracket
- Dimensions: Width varies from 26.3mm to 175mm depending on model
- Weight: 100g to 625g depending on model
Buy the Buy TRACOPOWER TBL Series Power Supplies Part Number TBL015105 Online
Purchase your TRACOPOWER TBL Series power supply online today and benefit from high efficiency, wide input voltage range, and adjustable output for diverse industrial applications. These UL-listed modules provide safe, reliable power with short circuit and overload protection, suitable for building automation, factory controls, and automation projects. Easy to install via DIN-rail or wall mounting, they are built to operate reliably in demanding environments at temperatures from -25°C to +70°C. Secure your power needs with our trusted supply today for seamless integration into your control systems.
Order your TRACOPOWER TBL Series 15W power supply today and ensure reliable, efficient power for your automation and industrial control projects.
