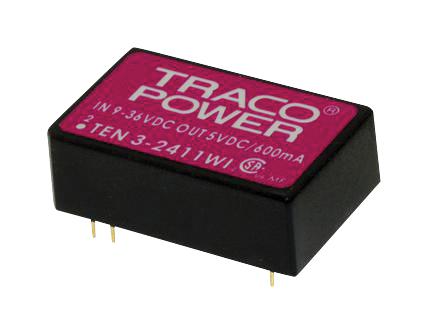

TRACO POWER TEN34812WI DC-DC Converter
The TEN 3WI series from TracoPower consists of 3W single and dual output DC-DC converters housed in a 24-pin DIP package. These converters feature a wide 4:1 input voltage range, automatic short circuit protection with indefinite recovery, current limiting, and internal filtering compliant with EN 55022-A and FCC Level A standards. They are suitable for battery-powered devices, distributed power systems in communications, instrumentation, and industrial electronics, providing isolated, tightly regulated voltages. The nominal input voltages are 24VDC and 48VDC, with output options including 3.3V, 5V, 12V, 15V, ±12V, and ±15V, with maximum output currents ranging from 200mA to 750mA. These modules achieve efficiency up to 84%, operate across -40°C to +70°C at full load, and feature a typical switching frequency of 350kHz. They provide I/O isolation of 1500VDC (60 seconds), with isolation capacitance around 380pF and resistance greater than 1000MΩ. Ripple and noise are specified at 75mV peak-to-peak within a 20MHz bandwidth. Certified under cUL/UL 60950-1 and IEC/EN 60950-1 safety standards, the modules measure 20.3mm x 10.2mm x 31.8mm and are backed by a 3-year warranty.
TRACO POWER TEN34812WI DC-DC Converter Specifications:
- Input voltage range: 9-36VDC or 18-75VDC
- Output voltages: 3.3V, 5V, 12V, 15V, ±12V, ±15V
- Output currents: 200mA to 750mA
- Efficiency: up to 84%
- Operating temperature: -40°C to +70°C
- Isolation voltage: 1500VDC (60 sec.)
- Isolation capacitance: approx. 380pF
- Isolation resistance: >1000MΩ
- Ripple and noise: 75mV peak-to-peak
- Switching frequency: 350kHz
- Dimensions: 20.3mm x 10.2mm x 31.8mm
- Weight: 12g
- Certifications: UL 60950-1, IEC/EN 60950-1, RoHS
- Housing: Non-conductive black plastic, epoxy potting
- Soldering temperature: max 265°C for 10 sec.
- Protection features: short circuit, over voltage, reverse voltage, current limiting
Buy the TracoPower Series TEN 3WI DC-DC Converter: TEN34812WI
Secure your systems with the TracoPower TEN34812WI 3W DC-DC converter module, offering wide input ranges, high efficiency up to 84%, and excellent isolation for industrial, communication, and instrumentation equipment. Its compact design, advanced protections, and compliance with international safety standards ensure robust performance in demanding environments. Perfect for battery-powered and distributed power architectures, this module simplifies integration and guarantees reliable operation across temperature extremes from -40°C to +70°C, backed by a 3-year warranty for peace of mind.
Buy TracoPower TEN34812WI now and experience 3W of reliable, highly efficient isolated power for industrial and communication applications.
Frequently Asked Questions
Where can I buy TRACO POWER TEN34812WI?
You can click on the BUY or RFQ button to purchase TEN34812WI from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TEN34812WI?
You can download the TEN34812WI datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TEN34812WI?
TRACO POWER
