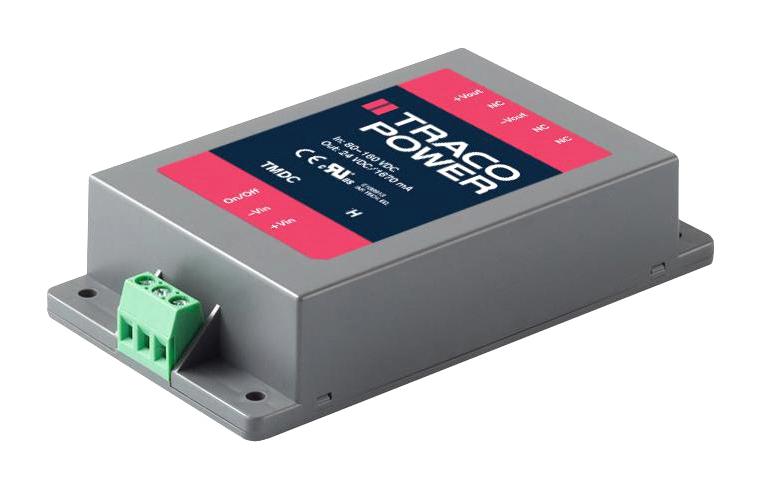

TRACO POWER TMDC407213H Industrial DC/DC Converter
The TRACO POWER TMDC 40H Series offers a 40 Watt fully encapsulated DC/DC converter with a high 2:1 input voltage range of 80-160 VDC. It features reinforced 3,000 VAC isolation, internal EMI filters, and operates within -40°C to +75°C without derating. The module supports multiple output voltages, including 5.1V, 12V, 15V, 24V, and dual outputs like ±12V and ±15V, making it suitable for harsh industrial applications requiring reliable isolated power with safety certifications (UL 62368-1). Its compact design ensures high efficiency, safety, and compliance with EMC standards.
TRACO POWER TMDC407213H Industrial DC/DC Converter Specifications:
- Input Voltage Range: 80-160 VDC with a surge voltage up to 170 VDC for 100 ms
- Output Power: 40 Watt
- Isolation Voltage: 3000 VAC reinforced
- Operating Temperature: -40°C to +75°C without derating
- Efficiency: 87-89% depending on model
- Input Current: 10 mA no load, 415 mA full load
- Protections: Overload, undervoltage, short circuit with automatic recovery
- Ripple and Noise: Up to 200 mVp-p depending on output
- Safety Certifications: UL 62368-1, IEC 62368-1
- EMC Compliance: EN 55032 Class A (Emission), EN 55035 (Immunity)
- Dimension: Compact plastic encapsulated module
- Remote control: Remote ON/OFF function with 3.5-12 VDC control voltage
- Vibration/Environmental: Standard industrial vibration and temperature ranges
- Cooling: Natural convection
- Mechanical Weight: Approx. 162 grams
Buy the Traco Power Series TMDC 40H Industrial DC/DC Converter: TMDC407213H
Purchase the Traco Power TMDC 40H Series high-efficiency 40 Watt industrial DC/DC converter online to ensure safe, reliable power conversion with reinforced isolation. This module supports a wide input range from 80 to 160 VDC, features internal EMI filters for EMC compliance, and includes safety approvals like UL 62368-1. Its fully encapsulated design withstands harsh conditions in industrial applications, providing stable outputs, protections against overloads, and remote ON/OFF control. Ideal for demanding environments requiring compliant, compact power modules.
Buy Traco Power TMDC407213H now and experience unmatched reliability and performance in harsh industrial environments.
Frequently Asked Questions
Where can I buy TRACO POWER TMDC407213H?
You can click on the BUY or RFQ button to purchase TMDC407213H from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TMDC407213H?
You can download the TMDC407213H datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TMDC407213H?
TRACO POWER
