TRACO POWER THM30523 Medical Power Converter
The THM-3 series consists of medical-grade 3 Watt DC/DC converters in a compact DIP-24 plastic package, offering wide 2:1 input voltage range, reinforced 5000 VACrms isolation, and very low leakage current under 2 microamps. They meet IEC/EN/ES 60601-1 standards for 2x MOPP, include an ISO 14971 risk management file, and conform to ISO 13485 quality system. These highly efficient converters operate reliably from -40°C to +90°C, making them suitable for medical equipment, transportation, control, measurement, and IGBT driver applications, with a 5-year warranty.
TRACO POWER THM30523 Medical Power Converter Specifications:
- Input Voltage Range: Wide 2:1 (e.g., 4.5 VDC to 9 VDC, 18 VDC to 36 VDC)
- Output Power: 3 Watts
- Isolation Voltage: 5000 VACrms rated, 250 VACrms working voltage
- Leakage Current: Less than 2 μA
- Efficiency: Up to 87.5%
- Operating Temperature Range: -40°C to +90°C
- Humidity: 5% to 95% non-condensing
- Dimensions: DIP-24 plastic package
- Shock & Vibration: According to MIL-STD-810F
- Start-up Voltage: 4.5 VDC to 36 VDC depending on model
- Switching Frequency: ~150 kHz
- Certifications: IEC/EN/ES 60601-1, ISO 13485, 60601-1-2, RoHS
- Isolation Capacitance: Max. 17 pF
- Casing Material: Non-conductive black plastic, silicone potting
- Soldering Temperature: 265°C for 10 seconds max.
- Protection: Over load at 150%, short circuit with automatic recovery, over voltage protection varies per output voltage
- Altitude: Up to 5000 m during operation

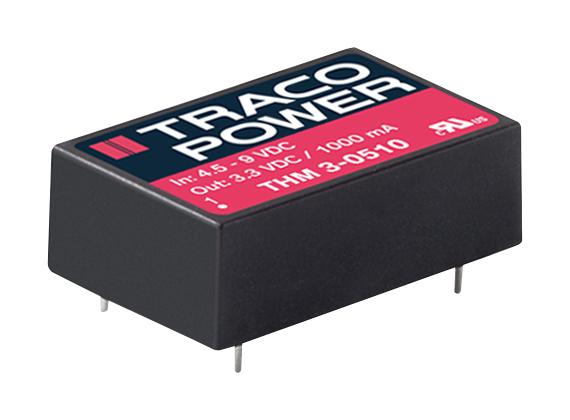

Buy the Buy Traco Power DC/DC Converter Part Number THM30523 Online
Enhance your medical and industrial equipment with the Traco Power THM30523 3 Watt DC/DC converter. Featuring 5000 VACrms isolation, wide input voltage, ultra-low leakage current, and efficiency up to 87.5%. Compact DIP-24 package ensures easy integration, while operating reliably from -40°C to +90°C. Certified for IEC/EN/ES 60601-1 and ISO 13485, it provides robust protection, including over current, over voltage, and automatic short circuit recovery. Perfect for demanding applications like medical devices, transportation, and measurement systems. Order now for dependable power conversion.
Buy Traco Power THM30523 now and experience unmatched reliability and high efficiency for medical-grade power conversion.
Frequently Asked Questions
Where can I buy TRACO POWER THM30523?
You can click on the BUY or RFQ button to purchase THM30523 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part THM30523?
You can download the THM30523 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of THM30523?
TRACO POWER
