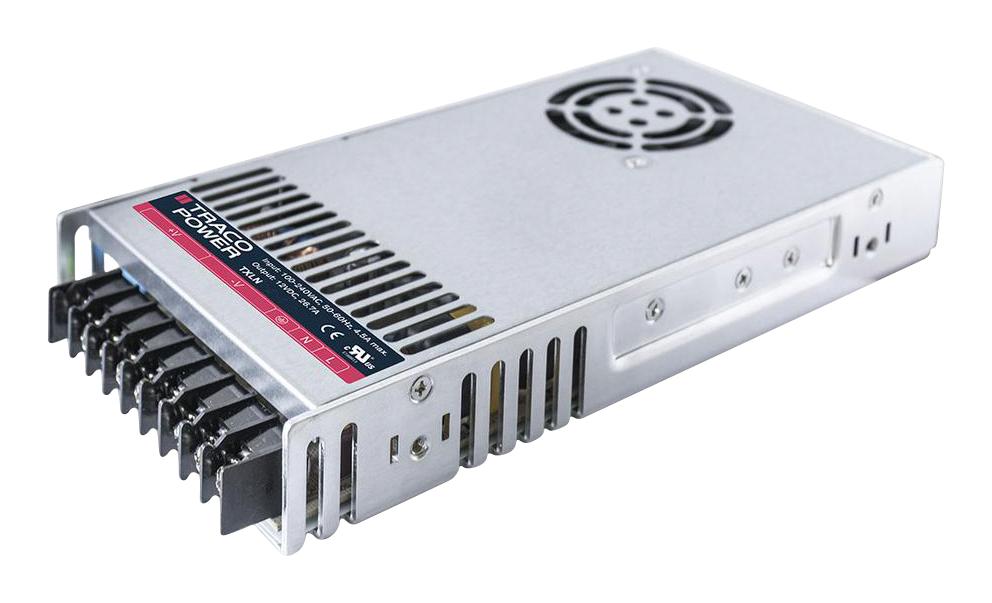

TRACO POWER TXLN320148 industrial power supply
The TXLN 320 series features compact, robust power supplies with a low-profile metal case and screw terminal connections for easy installation. They support universal input ranges of 85-264VAC and 120-375VDC, ensuring flexibility across different regions. With high efficiency up to 89%, active PFC over 0.95, and protections against short circuit, overvoltage, and overload, these supplies meet IEC/EN/UL 62368-1 safety standards. Rated for -30°C to +70°C operation, they provide reliable power for industrial and commercial applications, backed by a 3-year warranty and a switching frequency of approximately 90-110kHz.
TRACO POWER TXLN320148 industrial power supply Specifications:
- Input Voltage AC Range: 85 - 264 VAC, DC Range: 120 - 375 VDC
- Input Frequency: 50-63 Hz
- Output Power: 322 W
- Output Voltage: 48 VDC (adjustable ±10%)
- Output Current: 6.7 A
- Efficiency: Up to 89%
- Active Power Factor Correction: >0.95
- Leakage Current: 1500 pA max at 264 VAC
- Protection: Short circuit, overvoltage, overload
- Certifications: IEC/EN/UL 62368-1
- Operating Temperature: -30°C to +70°C
- Switching Frequency: approx. 90-110kHz
- Housing Material: Aluminum
- Connection: Screw terminal
- Isolation Test Voltage: input to output 3000 VAC
- MTBF: 175,900 hours
- Dimensions: Not specified, designed for standard DIN rail or panel mounting
- Safety Class: Class I, Pollution Degree 2
- Protection Category: OVC II
Buy the Traco Power TXLN320148 – Reliable Power Supply for Industrial Applications
Purchase the Traco Power TXLN 320148 power supply online today for a reliable, high-efficiency solution designed for industrial and commercial applications. Featuring universal input, active PFC, and comprehensive protections, this 322-watt unit ensures stable performance across a wide temperature range. Its compact aluminum casing with screw terminals makes installation straightforward in various equipment setups. Backed by IEC/EN/UL standards and a 3-year warranty, this power supply offers peace of mind while delivering consistent power, optimal efficiency, and safety for your critical projects.
Order your Traco Power Series TXLN 320148 today and enhance your industrial projects with dependable, high-efficiency power solutions.
Frequently Asked Questions
Where can I buy TRACO POWER TXLN320148?
You can click on the BUY or RFQ button to purchase TXLN320148 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TXLN320148?
You can download the TXLN320148 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TXLN320148?
TRACO POWER
