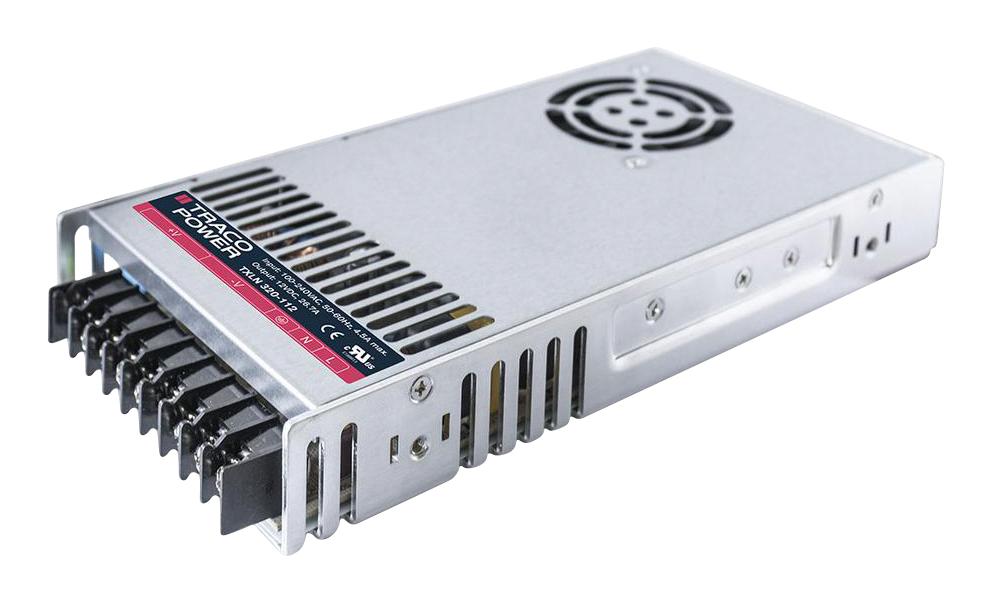

TRACO POWER TXLN320112 Industrial Power Supply
The TXLN 320 series comprises compact, enclosed power supplies designed for cost-sensitive applications. They feature a low-profile metal casing and screw terminal connections for easy installation. These power supplies support universal input voltages ranging from 85 to 264 VAC and meet European EMC standards as well as the Low Voltage Directive (LVD). They offer active power factor correction with a rating above 0.95, high efficiency up to 86%, and compliance with EN 61000-3-2 standards. Built-in protections include short circuit, overvoltage, and overload safeguards. Safety is certified to IEC/EN/UL 62368-1 standards. The units are suitable for operation from -30°C to +70°C, with a switching frequency between 90 kHz and 110 kHz. The aluminium housing includes screw terminal connections, and the power supplies are prepared for connection to protective earth (PE). They are rated for pollution degree 2 and overvoltage category II, equipped with a 3-year warranty, and are suitable for use in various industrial and commercial applications.
TRACO POWER TXLN320112 Industrial Power Supply Specifications:
- Output Power: 320 W
- Output Voltage: 24 VDC (nominal)
- Output Current: 13,400 mA (max.)
- Input Voltage AC Range: 85 - 264 VAC
- Input Voltage DC Range: 120 - 375 VDC
- Efficiency: up to 86%
- Protection: Short circuit, overvoltage, overload
- Input Frequency: 47 - 63 Hz
- Power Factor: ≥ 0.95
- Operating Temperature: -30°C to +70°C
- Isolation Test Voltage input to output: 3000 VAC
- Housing Material: Aluminium
- Connection Type: Screw terminal
- Safety Standards: IEC/EN/UL 62368-1
- Protection Class: Class I, Pollution Degree 2
- Overvoltage Category: II
- Switching Frequency: 90-110 kHz
- MTBF: 175,900 hours
- Weight: 850 g
- Certifications: UL, IEC, EN, RoHS, Reach
Buy the Traco Power Series TXLN320 320W Power Supply: TXLN320112
Purchase the Traco Power TXLN320112 online today to ensure your industrial equipment benefits from high efficiency, robust protections, and reliable operation. These 320-watt power supplies feature a compact aluminium housing, screw terminals for easy wiring, and support universal input voltage of 85 to 264 VAC. They meet international safety and EMC standards, including UL 62368-1, and provide built-in short circuit, overvoltage, and overload protections. With a robust construction and 3-year warranty, buy now to guarantee stable and efficient power delivery for your applications.
Buy Traco Power TXLN320112 now and experience unmatched reliability and performance for industrial and commercial power applications.
Frequently Asked Questions
Where can I buy TRACO POWER TXLN320112?
You can click on the BUY or RFQ button to purchase TXLN320112 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TXLN320112?
You can download the TXLN320112 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TXLN320112?
TRACO POWER
