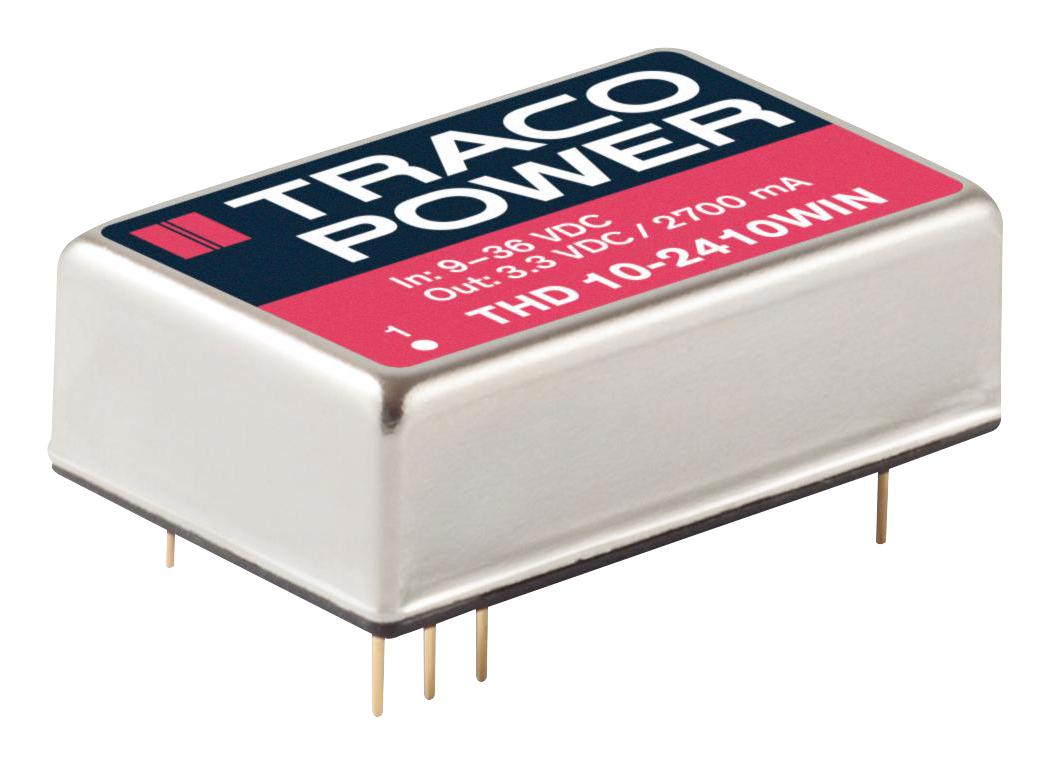

TRACO POWER THD104811N Industrial DC/DC Converter

The THD 10 series from TracoPower consists of 10W single and dual output DC/DC converters housed in a compact 24-pin DIP package. These high-performance, isolated converters feature a wide 2:1 input voltage range, low ripple and noise, and include protections such as continuous short circuit protection, built-in overvoltage protection, and an internal EMI filter compliant with EN 55022 Class A standards. Suitable for industrial electronics, instrumentation, data communication systems, and space-constrained battery-powered devices, they offer efficient power conversion with up to 88% efficiency, a fixed switching frequency of 400kHz, and high input-to-output isolation voltage of 1500VDC. Operating temperatures range from -40°C to +71°C, and the products are certified according to UL/cUL 60950-1, EN 60950-1, and IEC 60950-1 safety standards. Typical configurations include input voltages of 12VDC, 24VDC, or 48VDC and outputs of 3.3V, 5.1V, 12V, or ±12V/±15V with respective maximum currents of 3A, 2A, 830mA, ±415mA, and ±330mA. The physical dimensions are 20.3mm x 10.2mm x 31.8mm, and the converter comes with a 3-year warranty.

View THD104811NDatasheet [pdf]

Buy the Buy TracoPower THD 10 Series Part Number THD104811N Online

Purchase the TracoPower THD 10 series 10W industrial DC/DC converter online today. Featured with wide input ranges, high efficiency up to 88%, and comprehensive protections including short circuit and overvoltage, these converters are ideal for demanding industrial, instrumentation, and communication applications. Compact and reliable in a DIP-24 package, they ensure stable power delivery within a temperature range of -40°C to +71°C. Enjoy fast delivery and certified quality with a 3-year warranty, making them perfect for space-constrained, high-performance systems.

Get TracoPower THD 10 series high-efficiency power converter today—designed for industrial, instrumentation, and space-saving applications with robust protections.
